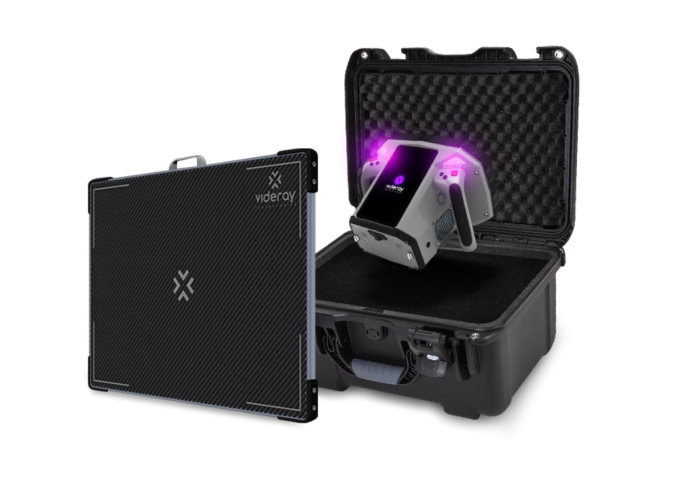

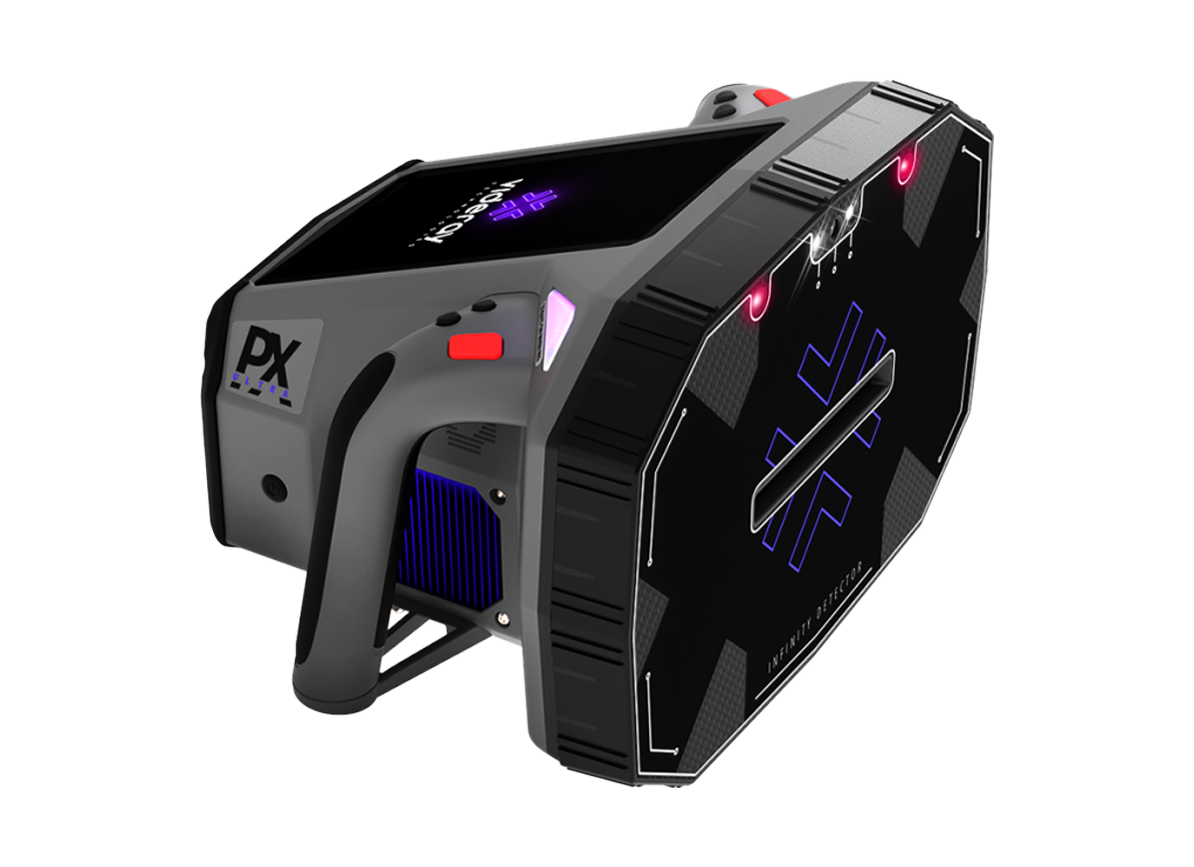

PX ULTRA Handheld Backscatter X Ray Imaging System
The PX ULTRA (by Videray, distributed by unival group) is a state-of-the-art handheld X-ray imager designed to 'see through' materials such as steel, aluminum, wood, and rubber. It utilizes an industry-leading 160 keV X-ray source to penetrate barriers and create high-resolution images of hidden objects. The system is designed for non-intrusive inspection, allowing operators to detect contraband, weapons, and threats without opening or damaging the target object. It features a built-in screen for immediate image analysis and is built on an Android operating system.
Key Features
Superior Image Quality
High Penetration Power
Benefits & Applications
Client Benefits
- Reduced Uncertainty: High surface penetration allows security forces to see deep into objects, keeping them safe and one step ahead of threats
- Optimized Time: Portability and instant imaging expedite the inspection process, allowing for quick decision-making without compromising security
- Ease of Use: Lightweight (5.25 kg) and compact design with a familiar Android interface minimizes training time
- Versatility: Can be used in confined spaces, outdoor environments (rain, snow, high winds), and at altitudes up to 4,500 m
- Non-Destructive: Enables inspection of car doors, tires, parcels, and walls without physical disassembly
Use Cases

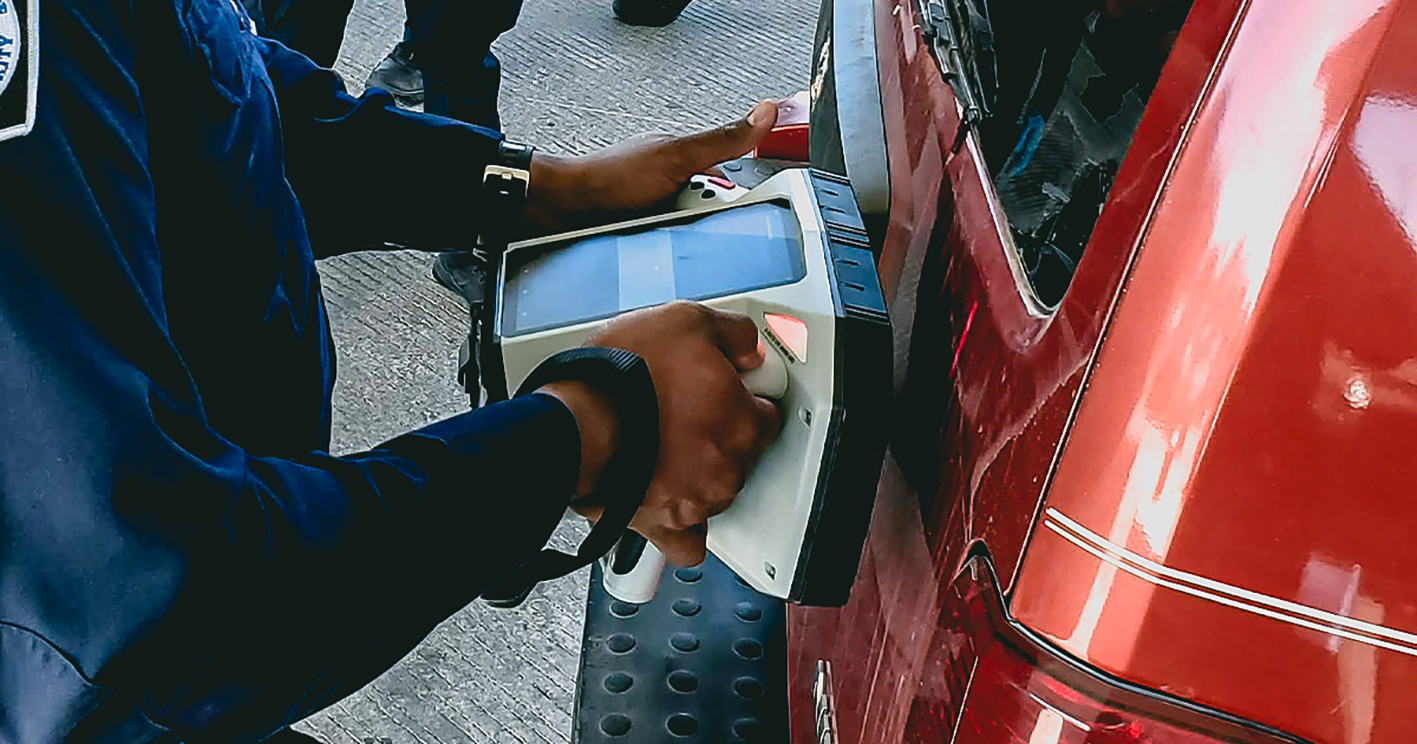

- Police & Law Enforcement: Searching vehicles for hidden compartments (traps) containing drugs or money
- Border Crossings & Customs: Inspecting vehicle panels, tires, and cargo for contraband
- Airports: Screening unattended baggage or suspicious items
- Governmental Protection: Securing venues and sweeping for surveillance devices
- Critical Infrastructure: Inspecting packages and facility perimeters
- EOD/IED: Assessing potential explosive devices from a safe distance (relative to manual opening)
Integration & Compatibility
- Data Transfer: Includes a data transfer cable and supports remote connectivity to external devices for image sharing and reporting
- Software: Multi-language user interface capable, running on a standard Android platform for easy integration with modern IT workflows
Deployment Options
- Portable: Completely handheld and battery-operated (6 hours operating time)
- Power: Can run on battery or direct A/C power
- Environment: Ruggedized for use in harsh conditions (-20°C to 60°C), including rain and snow
Technical Specifications
X-ray Source: 160 keV
Steel Penetration: ≤ 10 mm (up to 25mm stated in advantages)
Display: 7" Color Touch Screen (700-nit brightness)
Operating System: Android 9
Dimension (L x W x H): 21.1 cm x 28.2 cm x 18.5 cm
Weight: 5.25 kg
Battery Life: 6 hours (4 hours charging time)
Scanning Speed: Up to 30 cm/s (15 cm/s nominal)
Operating Temp: -20°C to 60°C
Environmental Protection: Rain, snow, high winds capable
Safety Standards: ANSI, ICRP, NCRP, Euratom compliant
Connectivity: Remote connectivity, OTA updates
