uniXGATE B9000M SV

Mobile Truck Scanner

The uniXGATE B9000M SV is a mobile high-energy X-ray inspection system designed for the rapid screening of trucks, containers, and vehicles. It uses a Betatron-type accelerator to inspect loaded vehicles without requiring manual unloading.

Technical & Functional

Key Features

Energy Source

 9 MeV Betatron accelerator

Throughput

Up to 25 trucks/hour (scan mode) and 150 trucks/hour (pass-through mode)

Imaging

Organic/inorganic material discrimination and colorization in a single scan

Variable Angle Scanning

Ability to obtain images at different angles (± 7°) to reveal zones hidden by the truck's structure (e.g., front/rear walls)

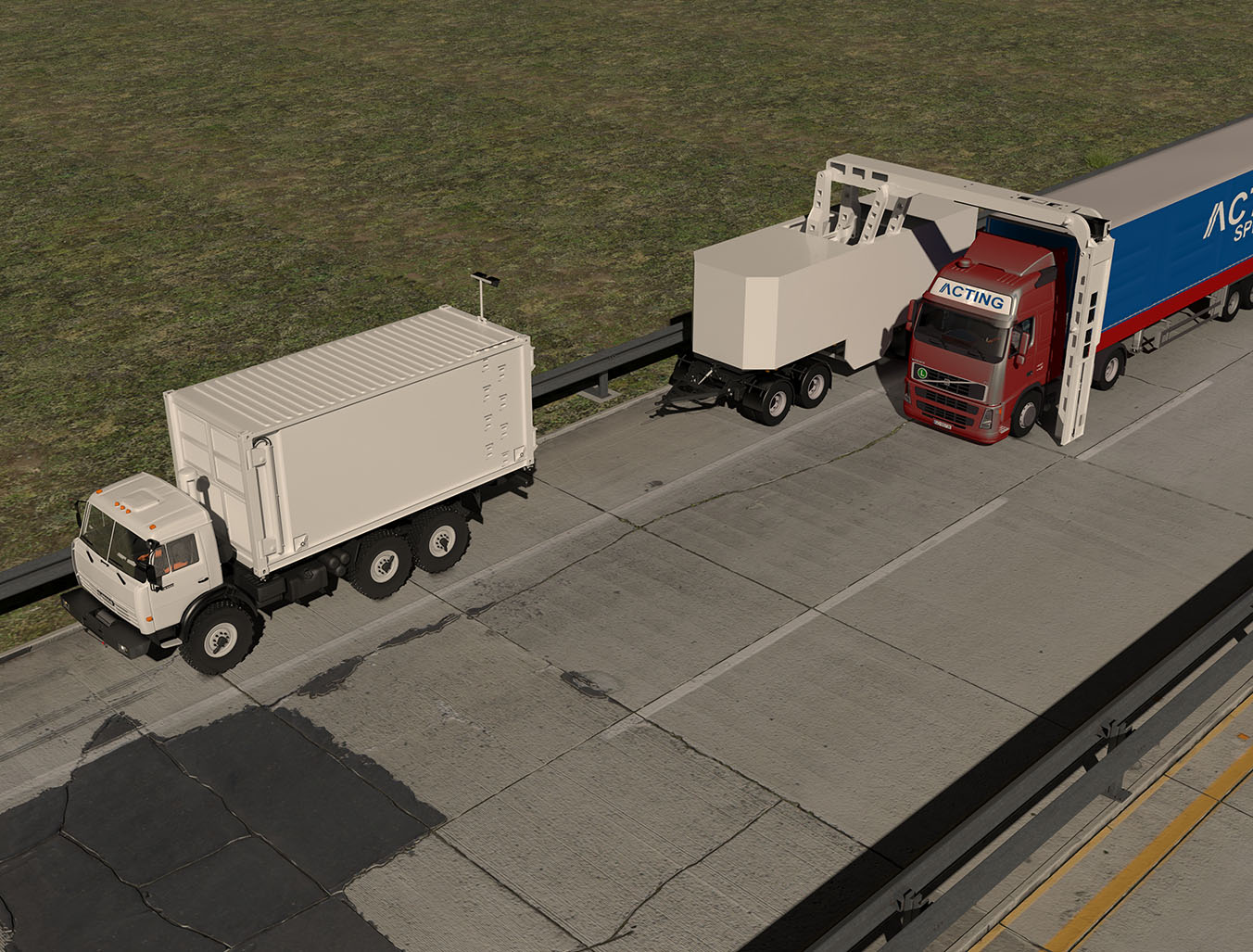

Images

uniXGATE B9000M SV

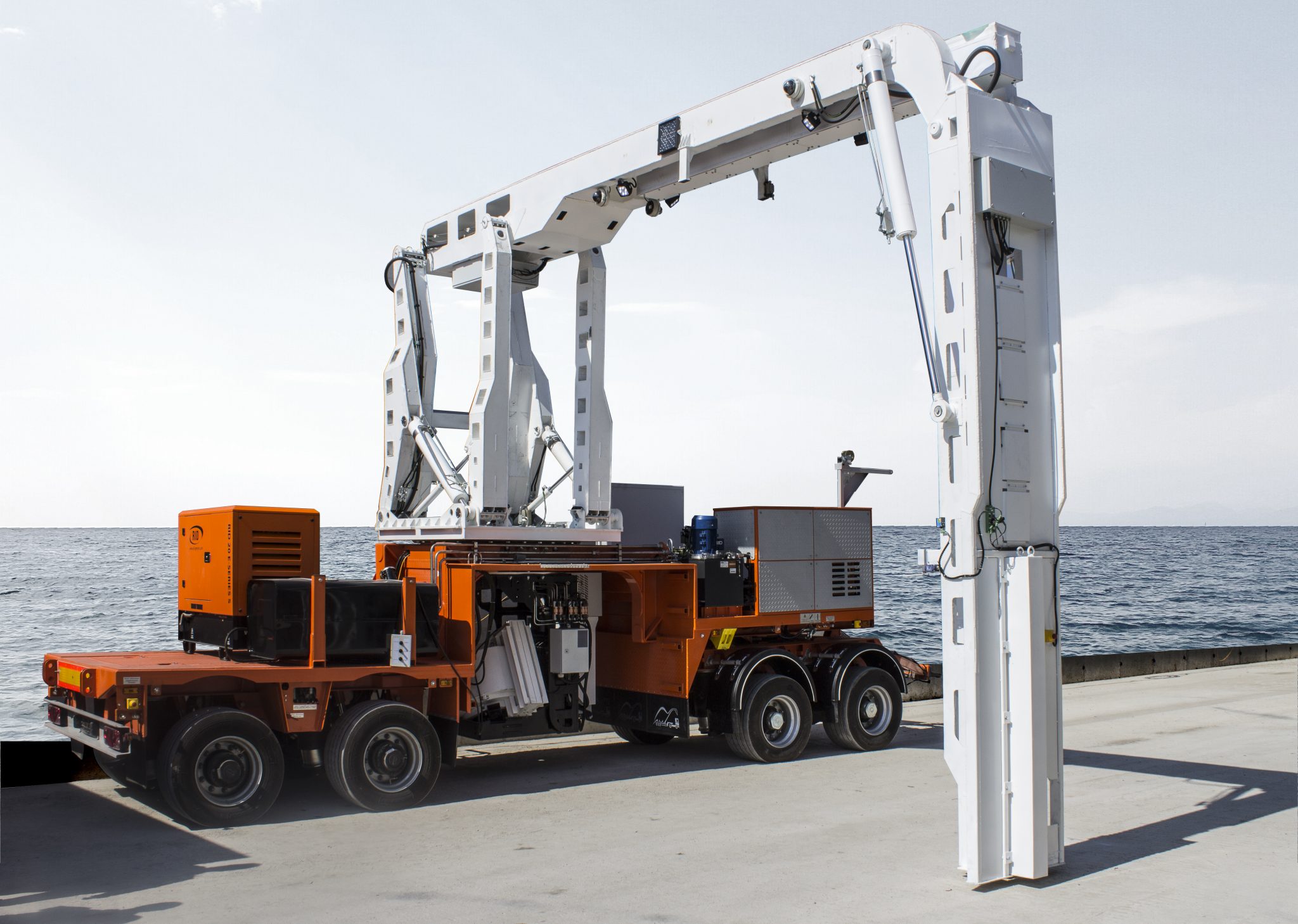

Images

uniXGATE B9000M SV

Benefits & Applications

Client Benefits

  • Flexibility: Fully mobile solution that can be deployed to different sites as needed
  • Efficiency: Reduces the need for manual inspection of complete trucks (cabin included)
  • High Penetration: Capable of penetrating dense cargo to verify manifests

Use Cases

  • Ports and borders requiring flexible deployment
  • Airports and government facilities
  • Temporary checkpoints for special events or threats

Integration & Compatibility

  • Integrates with the uniXCOMMAND container for remote operation
  • Connects to the int3grate platform for centralized data management

Deployment Options

  • Mobile: Mounted on a truck chassis for rapid relocation.
  • Outdoor: Designed for outdoor operation with a small footprint.

Technical Specifications

Energy Level: 9 MeV
Steel Penetration: 340 mm (typical), 320 mm (guaranteed)
Throughput (Scan Mode): Up to 25 trucks/hour
Throughput (Pass-Through): Up to 150 trucks/hour
Operation Mode: Mobile / Drive-by
