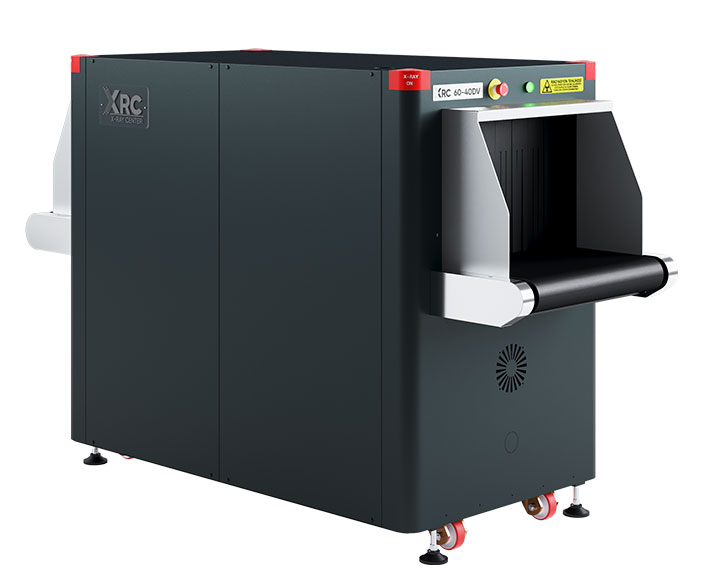

XRC 60-40DV
SMALL PARCEL AND BAGGAGE
The XRC 60-40DV is a dual-view (DV) transmission X-ray scanner with TSA ACSTL, ECAC, and STAC certification. It features two independent X-ray generators providing simultaneous vertical and horizontal imaging in a single pass, eliminating the need to re-orient packages. It is ideal for airports, customs, police departments, ministries, prisons, institutions, courts, airlines, and international logistics.
Key Features
XRC 60-40DV
Dual-View Transmission X-Ray Scanner
Compact Dual-View Design
Operational Dimensions & Elevated Conveyor
Multi-Energy Threat Visualization
Benefits & Applications
Client Benefits
- Regulatory compliance: TSA ACSTL, ECAC, and STAC certified for aviation security.
- Single-pass dual imaging: Eliminates need to re-scan or re-orient packages.
- Enhanced threat detection: Dual-view geometry improves detection of concealed threats.
- Compact footprint: Maintains small tunnel size while adding dual-view capability.
- Liquid explosive detection: Certified for detecting liquid threats per aviation standards.
Use Cases
- Airports and aviation security checkpoints
- Customs and border crossings
- Police departments and law enforcement
- Government ministries and offices
- Prisons and correctional facilities
- Courts and judicial institutions
- Airlines and air cargo facilities
- International logistics and customs
Integration & Compatibility
- Network Supervisory System (NSS) for multi-unit coordination.
- Barcode reader, external camera archiving, remote viewing.
- Smart card login and recheck station support.
Deployment Options
- Conveyor height: 810 mm (elevated for operator comfort).
- Load capacity: 165 kg max.
- Conveyor speed: 0.20 m/s.
- Power: 110/220V AC ±10%, 50/60 Hz, 10A max (higher than single-view models due to dual generators).
Technical Specifications
- Tunnel Size : 610 mm x 420 mm
- Dimensions (L x W x H) : 2220 mm x 1370 mm x 1270 mm
- Weight: ~725 kg
- Anode Voltage: 170 kV (operating at 160 kV)
- Tube Current: 1.0 mA
- Beam Direction: Generator 1: Vertical upward; Generator 2: Horizontal sideways
- Steel Penetration: 37 mm guaranteed; 39 mm typical
- Wire Resolution: 38 AWG guaranteed; 40 AWG typical
- Conveyor Load: 165 kg
- Conveyor Height: 810 mm

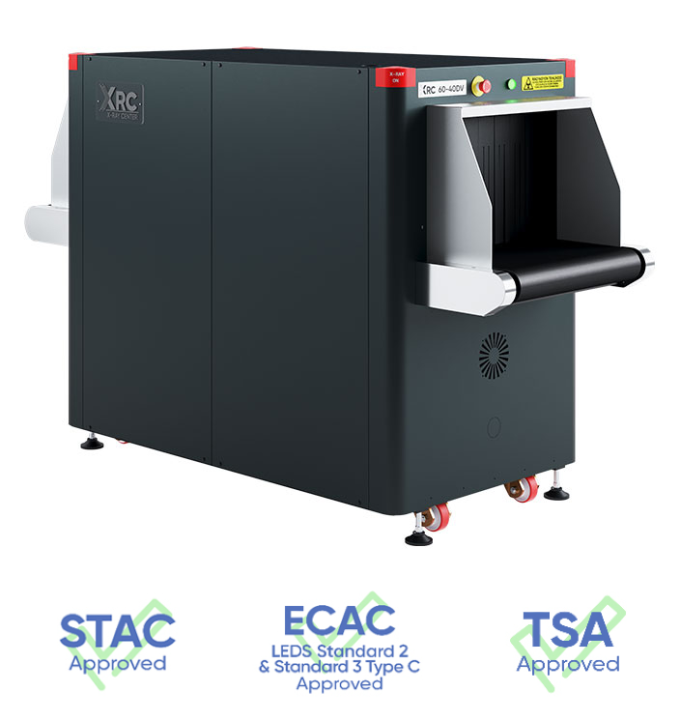

- Certifications: TSA ACSTL, ECAC Standard 2 & 3 Type C, STAC
- Processor: Intel Core i5 or better
- RAM: 4 GB or more
- Storage: 1 TB HDD
- OS: Linux
The XRC 60-40DV
Product Family

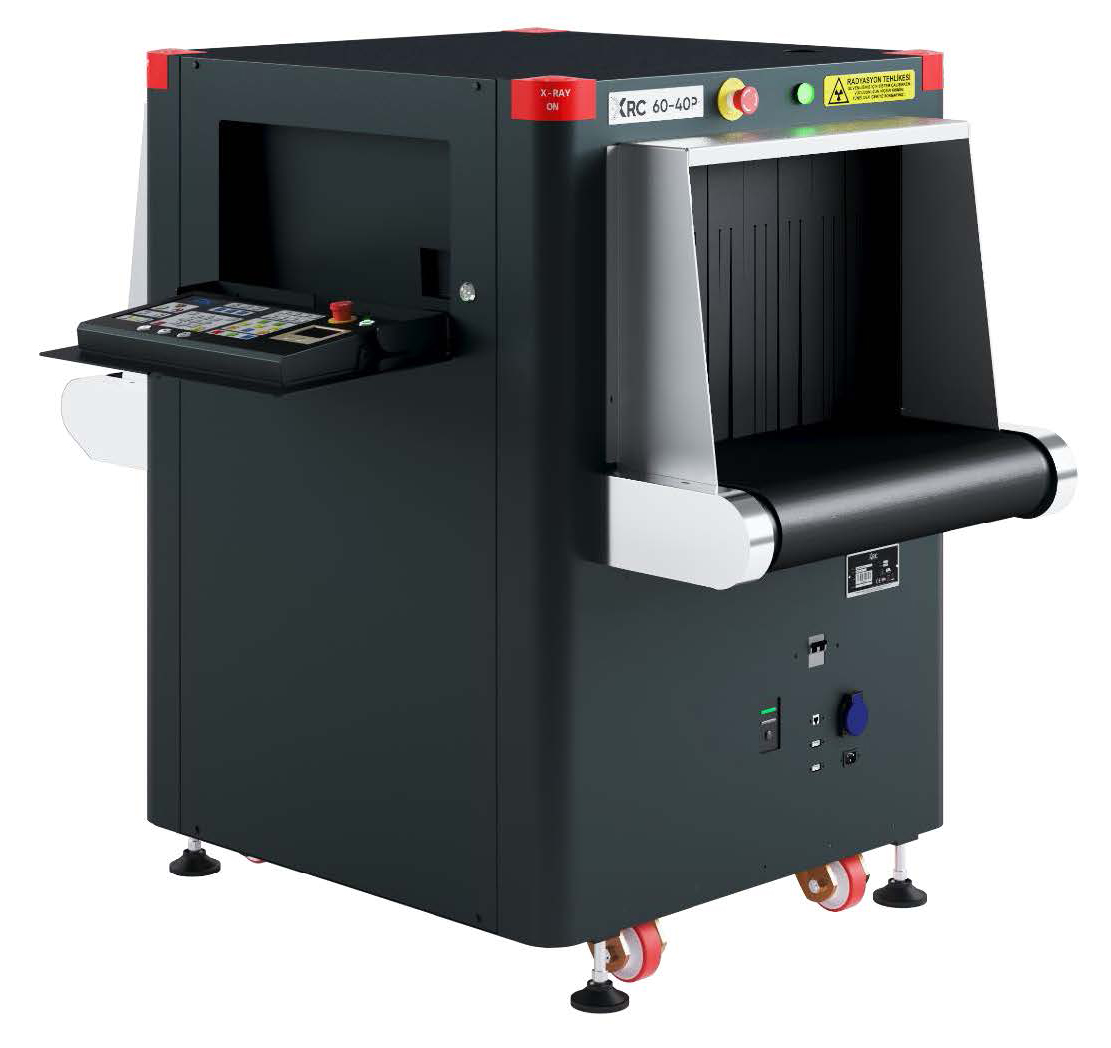

XRC 60-40P
The XRC 60-40P is a compact, space-efficient transmission X-ray scanner designed for detailed inspection of small handbags, packages, parcels, and cabin baggage. It is ideal for locations with limited operating space such as courts, police departments, offices, shopping malls, prisons, and hotels. The "P" designation indicates a portable/compact footprint optimized for tight security checkpoints.
- Programmable function keys parcel counter
- Date and time display
- Virtual threat image projection (TIP)
- Organic/inorganic threat alarm operator

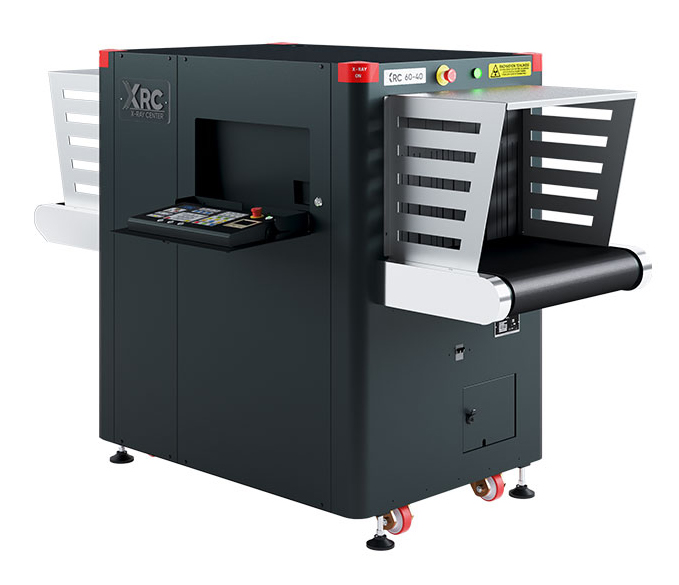

XRC 60-40
The XRC 60-40 is a medium tunnel x ray baggage inspection system for screening small to medium size baggage and parcels. Equipped with a 170 kV generator operating at 160 kV and a multi diode imaging structure, it delivers strong penetration and density based color imaging that differentiates organic, inorganic, and mixed materials. It supports identification of threats such as cutting tools, explosives, and narcotics within an optimized operational footprint.
- Programmable function keys parcel counter
- Date and time display
- Virtual threat image projection (TIP)
- Organic/inorganic threat alarm operator

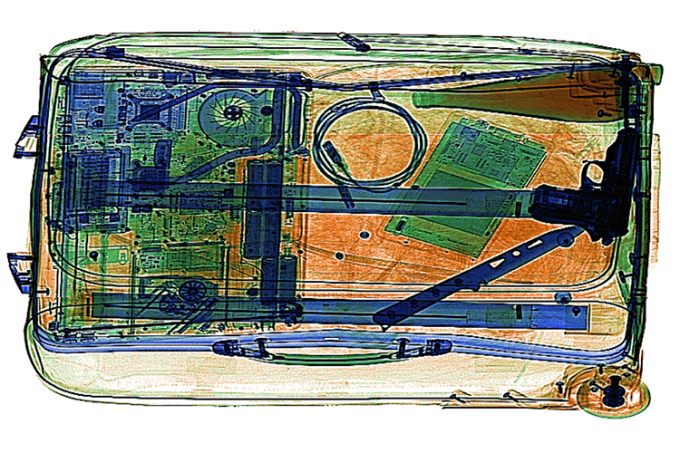

MAIN FUNCTIONS OF
IMAGE POST-PROCESSING

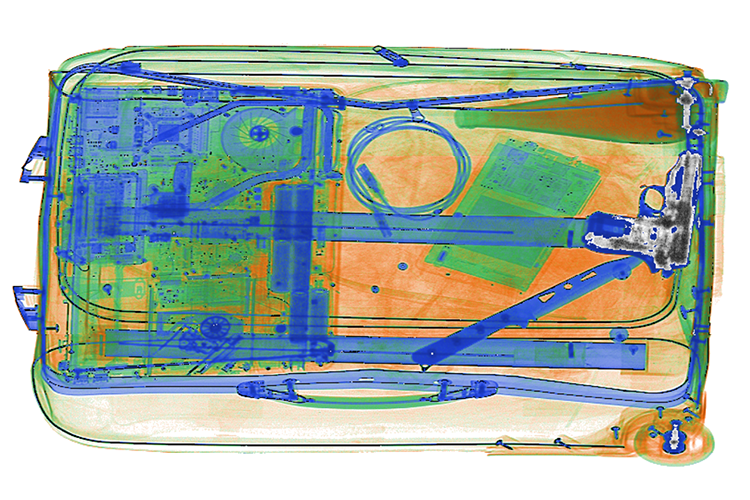

High Penetration (HP)

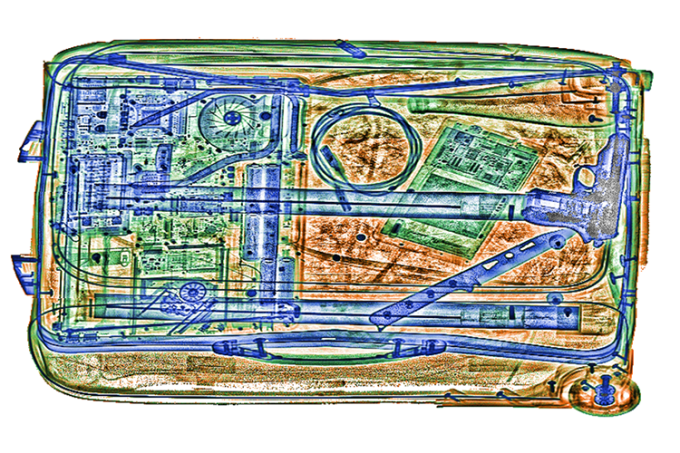

Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)

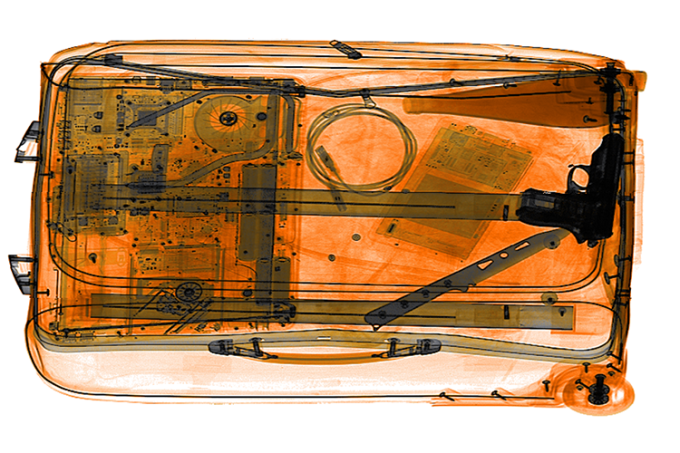

Organic Materials (OM)

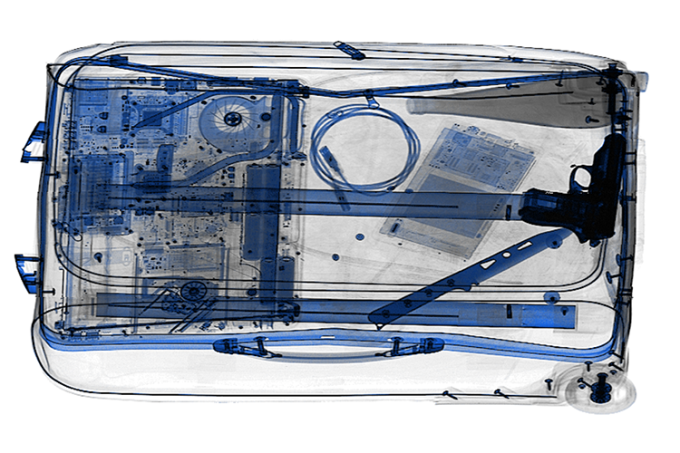

Inorganic Materials (IM)

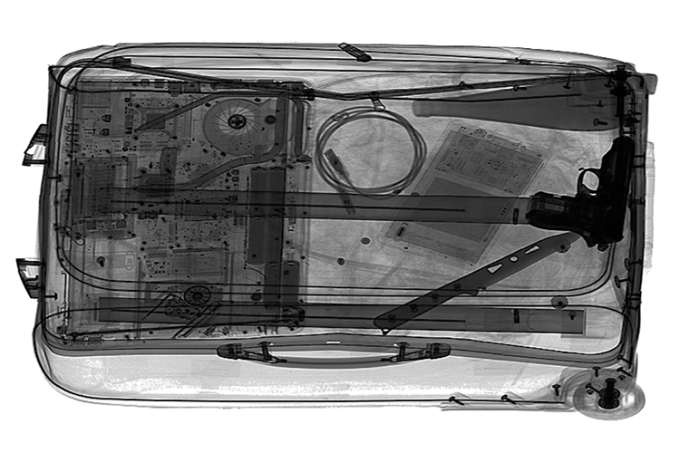

Black & White View (B/W)

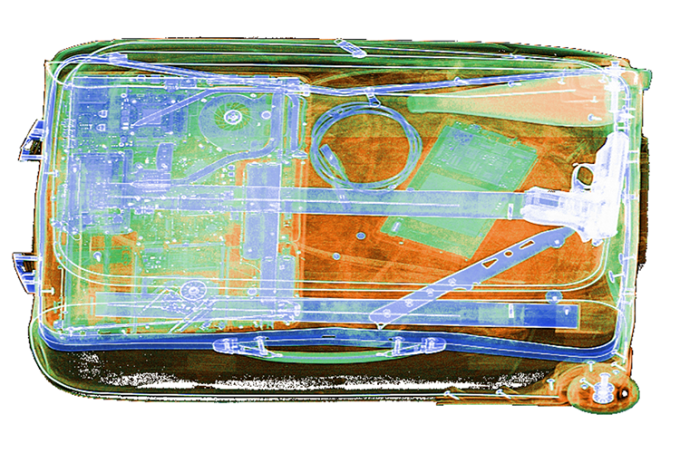

Inverted colours (IN)
OPTIONAL ACCESSORIES

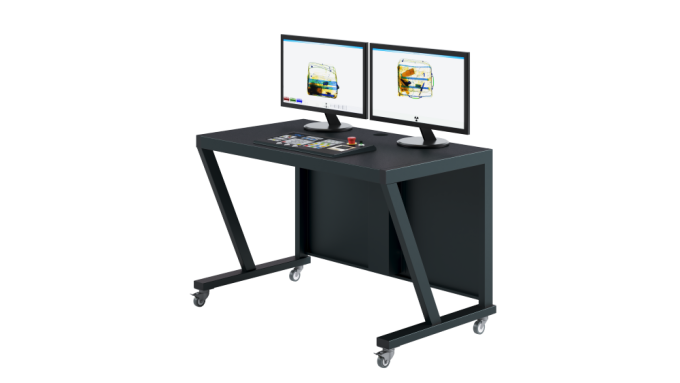

OPEN-CLOSED OPERATOR CONSOLE
ADJUSTABLE OPERATOR CONSOLE

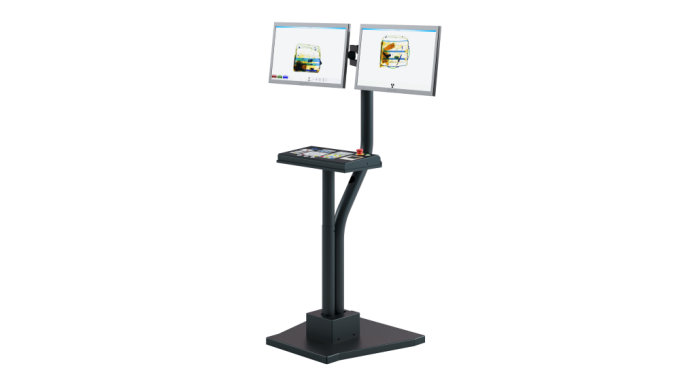

I-STAND OPERATOR CONSOLE

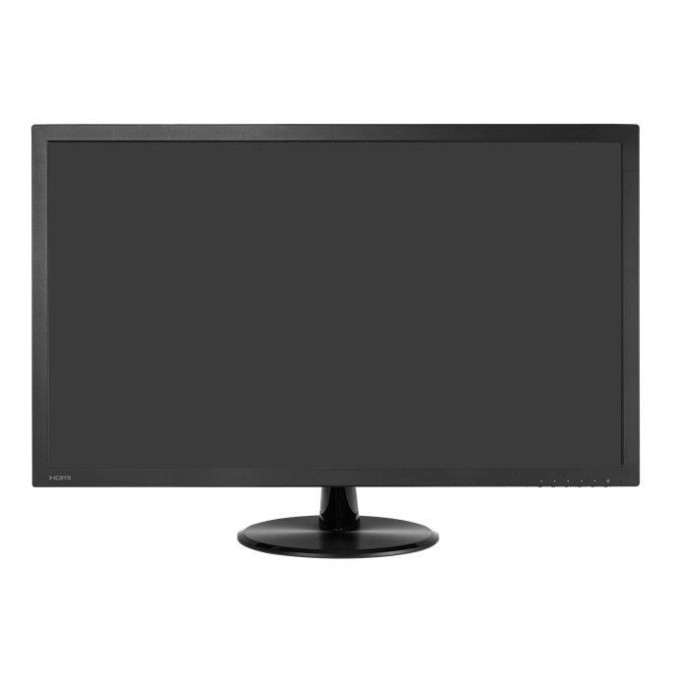

21,5‘’- 27’’ FLAT MONITOR

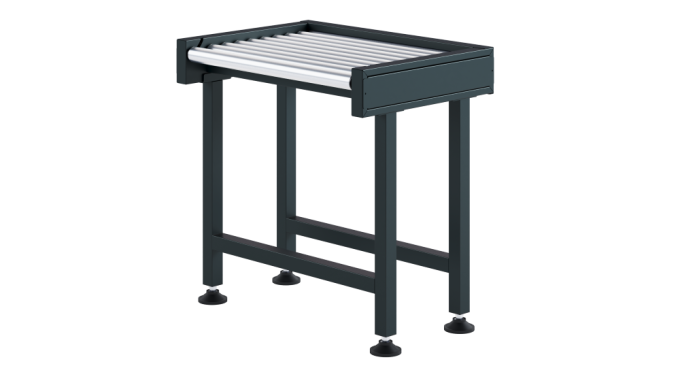

INPUT / OUTPUT ROLLERS

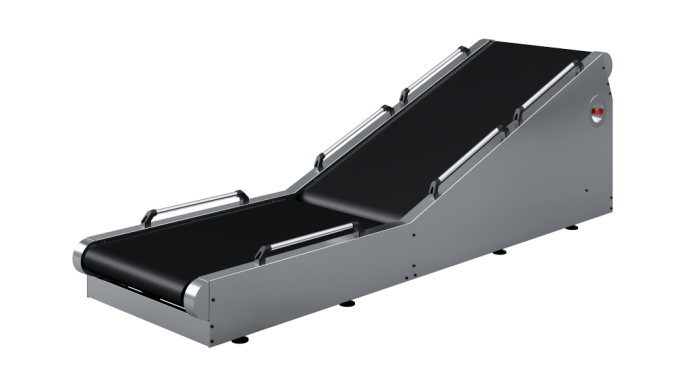

INCLINED CONVEYOR

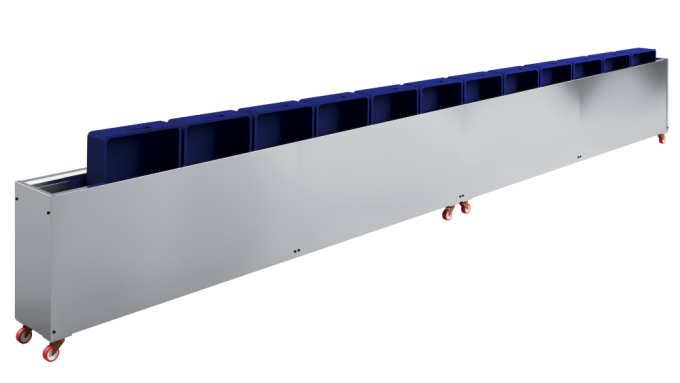

TRAY RETURN SYSTEM (MOTORIZED/GRAVITY)
SEARCH TABLE
