XRC 65-45 Compact X-ray Scanner for Baggage and Parcel Screening

Mid-Range Compact Scanner

XRC 65-45

SMALL PARCEL AND BAGGAGE

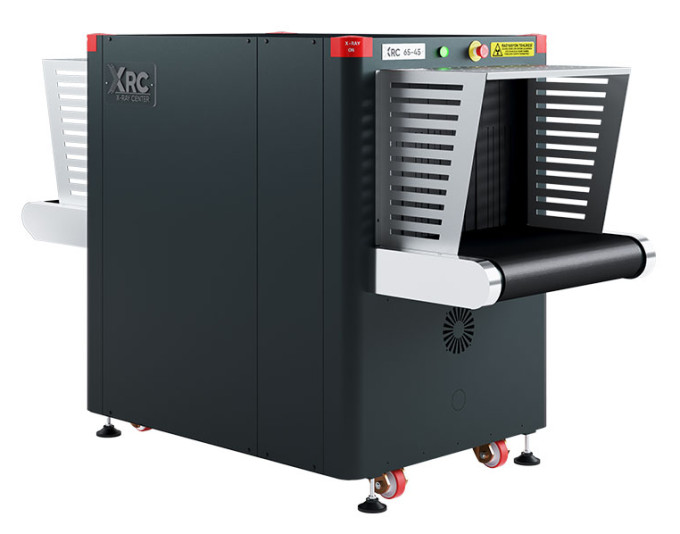

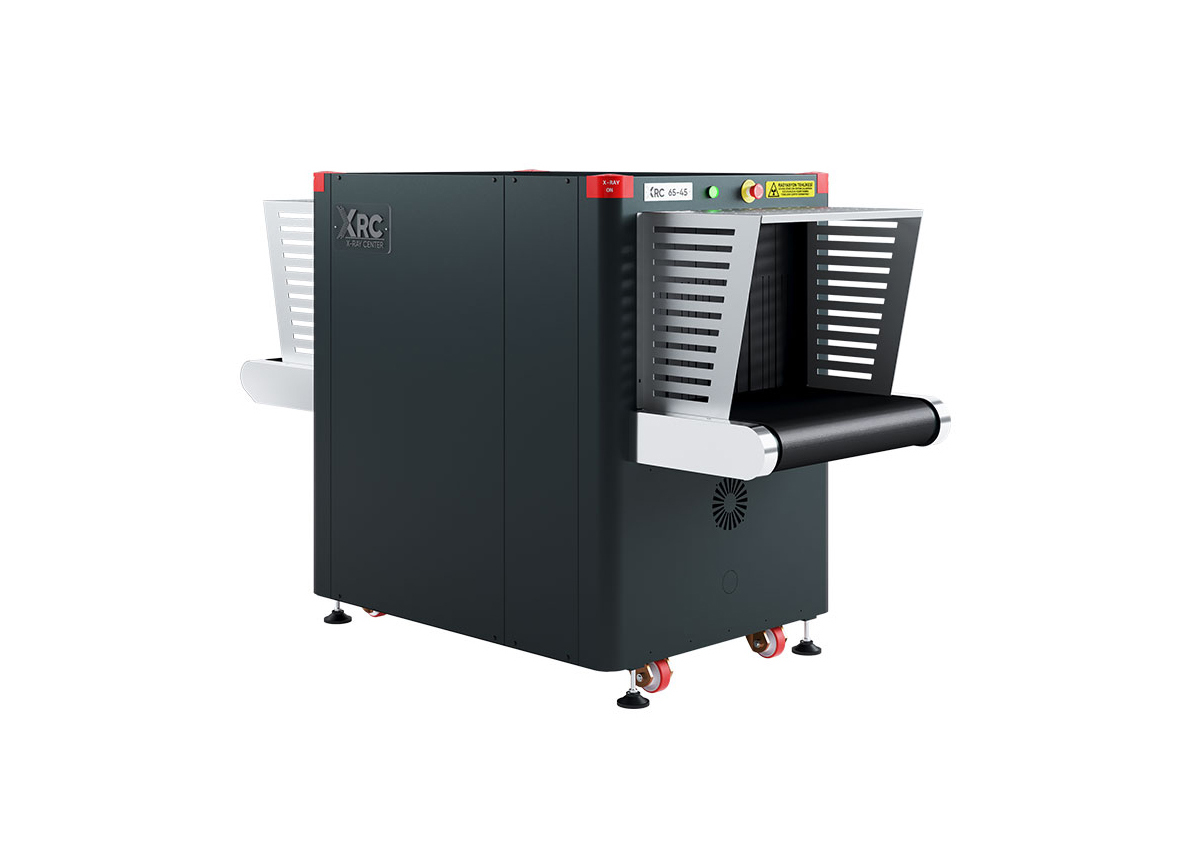

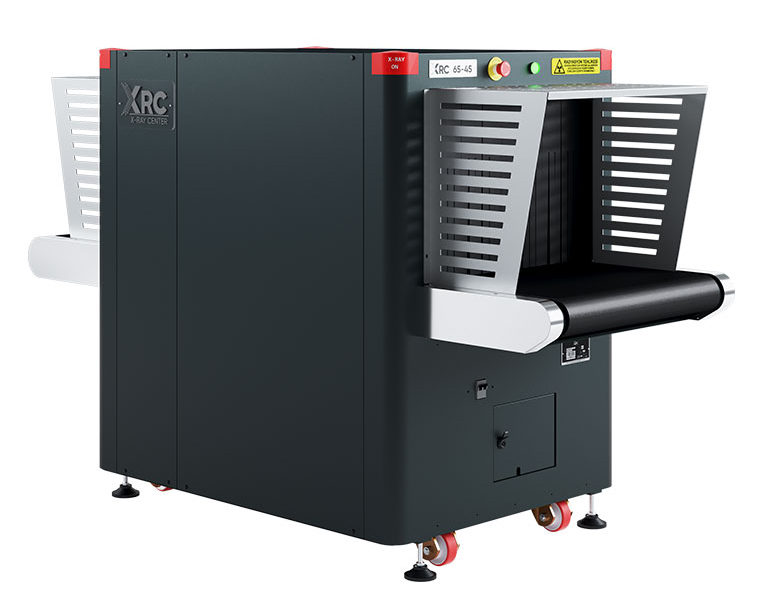

The XRC 65-45 is a mid-range, compact transmission X-ray scanner for small handbags, packages, parcels, and cabin baggage. It is a preferred model for locations with limited operating space and offers a balance between compact footprint and scanning capability. Ideal for airports, customs gates, police departments, offices, ministries, prisons, and courts.

Technical & Functional

Key Features

XRC 65-45

Compact tunnel

650 mm (W) x 460 mm (H) – slightly larger than XRC 60-40P.

Single-view imaging

Vertically upward beam.

Steel penetration

37 mm guaranteed / 39 mm typical.

Wire resolution

38 AWG guaranteed / 40 AWG typical.

Anode voltage

170 kV (operating at 147 kV).

Tube current

0.7 mA.

Material discrimination

Low Z / Medium Z / High Z with ±0.5 Z accuracy.

Standard features

TIP, OTP, multi-language, parcel counter, self-diagnosis.

Mid-Range Compact Inspection Platform

The XRC 65-45 combines a 650 mm x 460 mm tunnel with a space efficient housing, offering strong penetration performance in a balanced mid range footprint suitable for professional security checkpoints.

Accurate Material Separation

Multi energy transmission imaging distinguishes Low Z, Medium Z, and High Z materials with ±0.5 Z accuracy, supporting clear identification of metallic and non metallic threats within baggage and parcels.

Ergonomic Conveyor Design

Designed with a 720 mm conveyor height and smooth belt operation at 0.20 m/s, the system supports efficient baggage flow while maintaining operator comfort and controlled screening conditions.

Optimized Installation Footprint

With overall dimensions of 2050 mm x 1300 mm x 895 mm, the XRC 65-45 delivers expanded tunnel capacity while remaining suitable for installations where floor space must be carefully managed.

Benefits & Applications

Client Benefits

Balanced design: Slightly larger tunnel than XRC 60-40P while maintaining compact footprint.
Efficient operation: Low power consumption (5A max) with good penetration.
Operator-friendly: Ergonomic conveyor height (720 mm) and intuitive controls.
Flexible integration: Supports optional NSS, barcode readers, and remote viewing.
