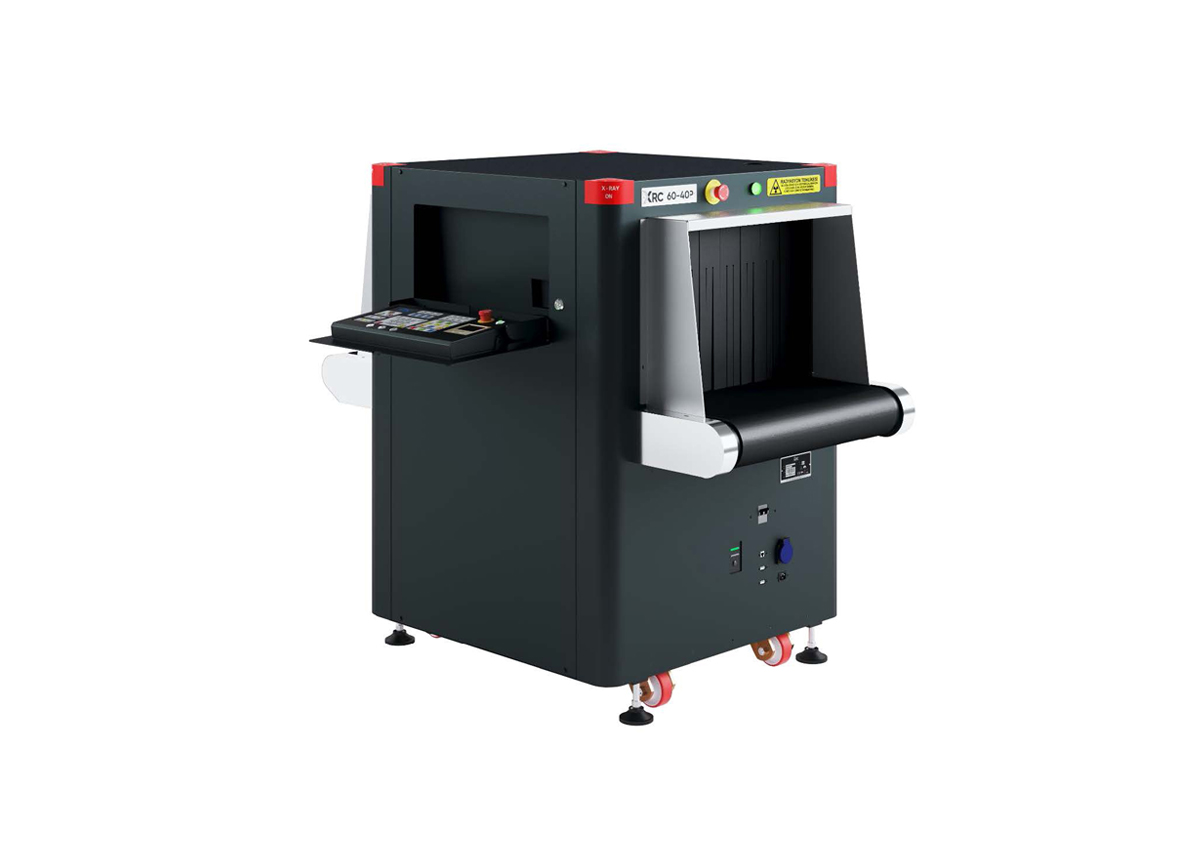

XRC 60-40P Compact Handbag & Parcel Scanner
The XRC 60-40P is a compact, space-efficient transmission X-ray scanner designed for detailed inspection of small handbags, packages, parcels, and cabin baggage. It is ideal for locations with limited operating space such as courts, police departments, offices, shopping malls, prisons, and hotels. The "P" designation indicates a portable/compact footprint optimized for tight security checkpoints.
Download
Download PDFDownload
Download link sent to your email!
Key Features
XRC 60-40P
Compact tunnel
Space saving
Single-view imaging
Compact Footprint & Ergonomic Design
X-RAY SCREENING SYSTEM
Benefits & Applications
Client Benefits
- Space-saving: Smallest footprint in the XRC range, perfect for cramped security areas.
- Cost-effective: Lower power draw and compact design reduce installation costs.
- Ease of use: Intuitive interface with programmable function keys and threat alarm.
- Portability: Can be relocated between multiple checkpoints as needed.
Use Cases
- Courts and justice facilities
- Police departments and precinct offices
- Government buildings and ministries
- Shopping malls and retail security
- Prisons and detention facilities
- Hotels and hospitality venues
Integration & Compatibility
- Optional NSS (Network Supervisory System) for multi-unit coordination.
- Barcode reader, remote viewing, and smart card login available.
- Compatible with external camera archiving and recheck stations.
Deployment Options
- Conveyor height: 730 mm (ergonomic for standing operators).
- Load capacity: 165 kg max.
- Conveyor speed: 0.20 m/s (forward/reverse).
- Power: 110/220V AC ±10%, 50/60 Hz, 5A max.
Technical Specifications
- Tunnel Size: 610 mm x 420 mm
- Dimensions (L x W x H): 1427 mm x 1270 mm x 870 mm
- Weight: ~455 kg
- Anode Voltage: 170 kV (operating at 147 kV)
- Tube Current: 0.7 mA
- Steel Penetration: 37 mm guaranteed; 39 mm typical
- Wire Resolution: 38 AWG guaranteed; 40 AWG typical
- Conveyor Load : 165 kg
- Conveyor Height: 730 mm
- Processor: Intel Core i5 or better
- RAM: 4 GB or more
- Storage: 1 TB HDD
- OS: Linux

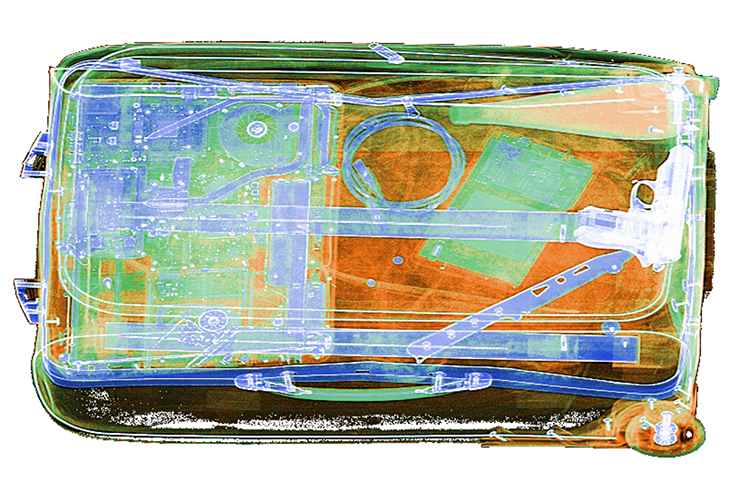

MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
OPEN-CLOSED OPERATOR CONSOLE
ADJUSTABLE OPERATOR CONSOLE
I-STAND OPERATOR CONSOLE
21,5‘’- 27’’ FLAT MONITOR
INPUT / OUTPUT ROLLERS
INCLINED CONVEYOR
TRAY RETURN SYSTEM (MOTORIZED/GRAVITY)
SEARCH TABLE
TEST KIT (STP/ASTM)

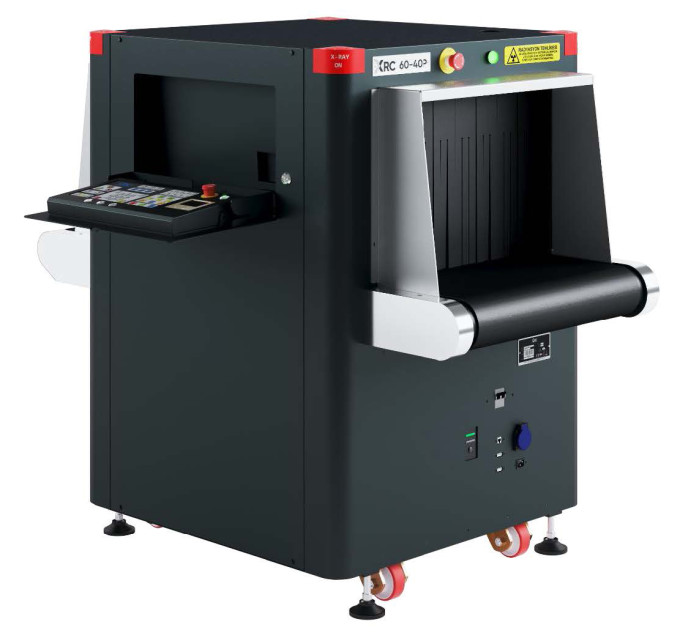

The XRC 60-40P
Product Family

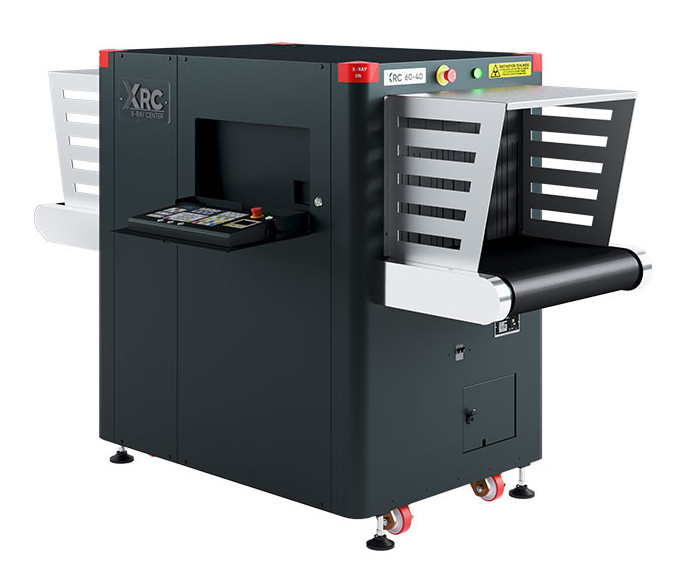

The XRC 60-40 is an ACSTL-qualified X-ray device approved by the TSA, and one of the preferred XRC models thanks to its compact dimensions and functionality. It offers advanced image processing, hazard alarms, and best-in-class software, making it ideal for locations with limited space. The system delivers high image quality with color-coded differentiation of organic, inorganic, and mixed materials, enabling accurate threat detection with a low error rate.
Key features of XRC 60-40 :
- Programmable function keys
- Parcel counter
- Date and time display
- Virtual threat image projection (TIP)
- Organic/inorganic threat alarm operator
- Training program (OTP)
- UPS (for computer supply)
- Multi-language support
- Self-diagnosis
- Generator timer automatic stop conveyor
