XRC 180-180DV (320 kV) | Pallet and Cargo
The XRC 180-180DV (320 kV) is a dual-view (DV) high-energy transmission X-ray scanner for medium and large packages on pallets and other bulky freight. It is TSA ACSTL qualified and designed for high-security locations such as airports, border crossings, freight terminals, customs warehouses, logistics hubs, and critical infrastructure sites.
Equipped with two independent 320 kV generators (vertical and horizontal), it provides simultaneous dual-view imaging (top-down and side) in a single pass, eliminating the need to re-orient cargo. Its large tunnel (1800 mm x 1810 mm) and 3000 kg conveyor load capacity enable efficient screening of oversized and heavily packed consignments.
Download
Download PDFDownload
Download link sent to your email!
Key Features
Core scanning technology
High penetration & resolution
Benefits & Applications
Client Benefits
- High detection performance:
320 kV and dual-view geometry significantly improve detection of concealed threats in dense or cluttered cargo, reducing blind spots and re-scan rates. - Operational efficiency:
Large tunnel and 3-ton capacity with dual-view in a single pass improve throughput and minimize handling. - Lower error rate:
Advanced imaging, material discrimination, and TIP/OTP functions reduce operator fatigue and misinterpretation. - Flexible integration:
Optional NSS, remote viewing, recheck and barcode systems support modern, networked security operations. - Regulatory confidence:
TSA ACSTL qualification and CE / FDA compliance make it suitable for aviation and high-security use.
Use Cases
- Airports & Air Cargo Terminals: Screening of pallets, ULDs, outsized baggage, and general cargo.
- Border Crossings & Customs: Inspection of medium and large freight shipments on pallets, large parcels, and dense loads.
- Distribution Centers & Logistics Hubs: Security screening before dispatch or storage.
- Government & Justice Facilities: Screening incoming large parcels, secure logistics, and evidence shipments.
- Critical Infrastructure: Protection of power plants, defense sites, and other high-value facilities from illicit cargo-borne threats.
Integration & Compatibility
Standard integration capabilities: Works as a standalone unit or as part of a networked screening environment.
Compatible with:
- Network Supervisory System (NSS) (optional).
- Remote viewing station and recheck station (optional).
- Barcode reader for linking X-ray images with shipment IDs (optional).
- External camera archiving for synchronizing X-ray images and CCTV.
Software & hardware integration options
- Smart Card login (optional) for role-based access and operator accountability.
- Remote access connection (optional) for maintenance or centralized monitoring.
Deployment Options
Tunnel size: 1800 mm (W) x 1810 mm (H) – suitable for large cargo and pallets.
Dimensions (L x W x H): 8580 mm x 3410 mm x 3465 mm.
Weight: ~10,500 kg (unpacked).
Power:
- 110/220V AC ±10%, 50/60 Hz.
- 1-phase 16A max or 3-phase 7A max.
Installation environment
Indoor or sheltered areas in airports, cargo terminals, warehouses, and secure hubs.
Requires appropriate floor loading for ~10.5 t and conveyor line integration.
Optional accessories simplify integration into existing lines:
- Input / output rollers, inclined conveyors, tray return systems.
- Search table, protective cover.
- Radiation meter for local compliance verification.
- External UPS for full system backup.
Technical Specifications
- Dimensions (L x W x H): 8580 mm x 3410 mm x 3465 mm
- Weight: ~10,500 kg (unpacked)
- Conveyor Height: 465 mm
- Conveyor Load Capacity: 3000 kg (evenly distributed)
- Conveyor Speed: 0.20 m/s (forward/reverse)
- Anode Voltage: 320 kV (operating at 320 kV)
- Steel Penetration: 70 mm guaranteed; 72 mm typical¹
- Wire Resolution: 36 AWG guaranteed; 38 AWG typical¹
- Material Discrimination: Low Z / Medium Z / High Z (to 0.5 Z accuracy)
- Cooling: Oil and forced air cooling
- Standards & Safety: CE, US FDA 21CFR 1020.40, ISO 1600 film safe
MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
OPEN-CLOSED OPERATOR CONSOLE

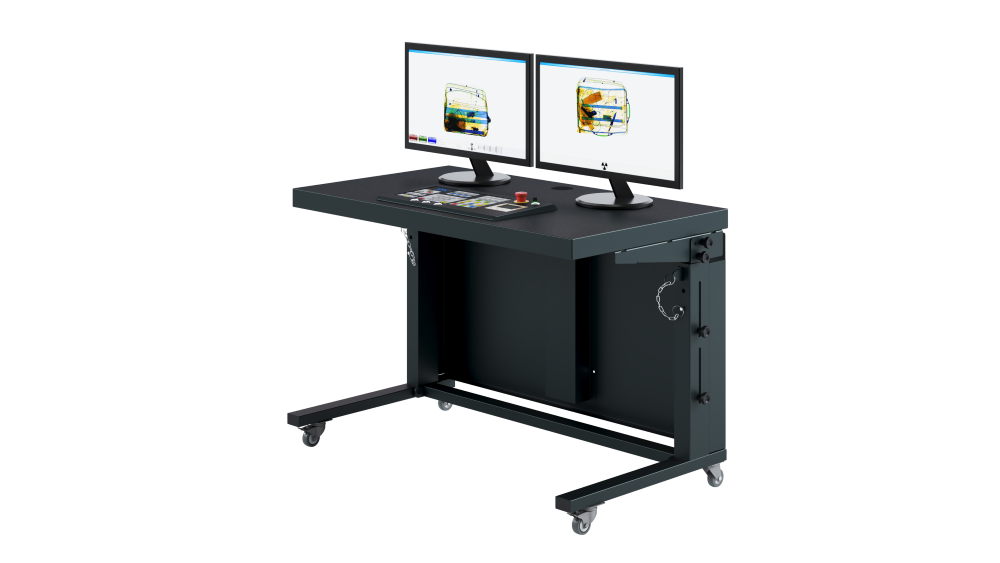

ADJUSTABLE OPERATOR CONSOLE
I-STAND OPERATOR CONSOLE
21,5‘’- 27’’ FLAT MONITOR
INPUT / OUTPUT ROLLERS
INCLINED CONVEYOR
TRAY RETURN SYSTEM (MOTORIZED/GRAVITY)
SEARCH TABLE
