XRC 150-165DV (200kV) Dual-View Cargo X-ray Scanner

Dual-View High-Energy Cargo Scanner

XRC 150-165DV (200kV)

PALLET AND CARGO

The XRC 150-165DV (200kV) is a dual-view X-ray scanner featuring two generator sources for simultaneous horizontal and vertical imaging. This advanced system delivers outstanding performance with its potent 200kV generator and dual-view (DV) technology, enabling high-resolution imaging in both planes without requiring package repositioning. The system is ideal for high-security facilities requiring thorough and efficient cargo screening.

Technical & Functional

Key Features

XRC 150-165DV (200kV)

Tunnel Size

1,540 mm × 1,660 mm

Anode Voltage

200 kV (operating at 200 kV)

Steel Penetration

50 mm guaranteed; 52 mm typical

Wire Resolution

36 AWG guaranteed; 38 AWG typical

Conveyor Load Capacity

3,000 kg evenly distributed

Conveyor Height

385 mm

Beam Direction

1st Generator - Vertically downward; 2nd Generator - Horizontally sideward

Dual-View Technology

Two-generator sources for simultaneous imaging

Multi-diode Structure

Organic/Inorganic/Mixed material differentiation

Multi Language Interface

Supports multiple language options for international deployments.

High Energy Dual View Cargo Screening System

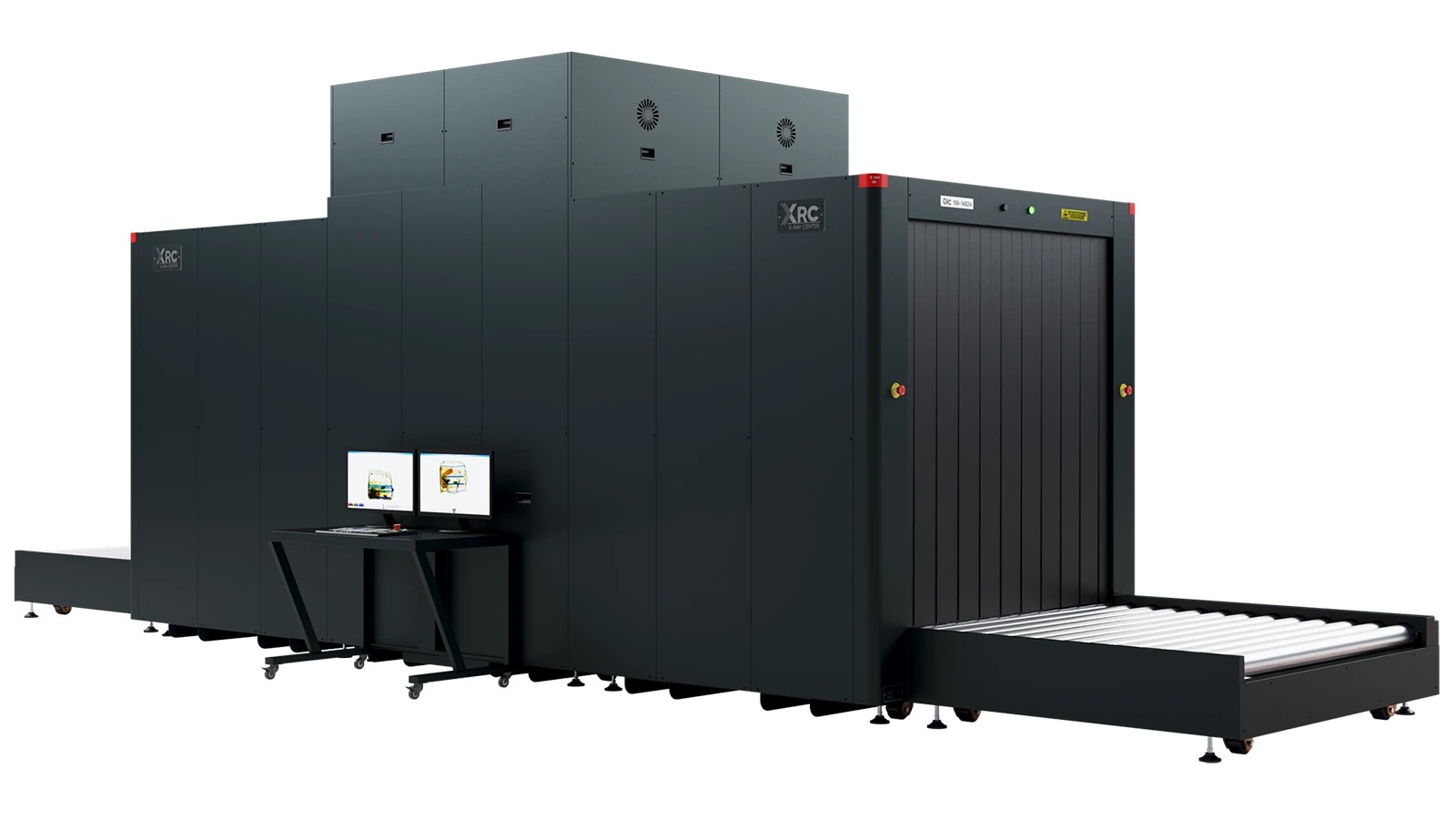

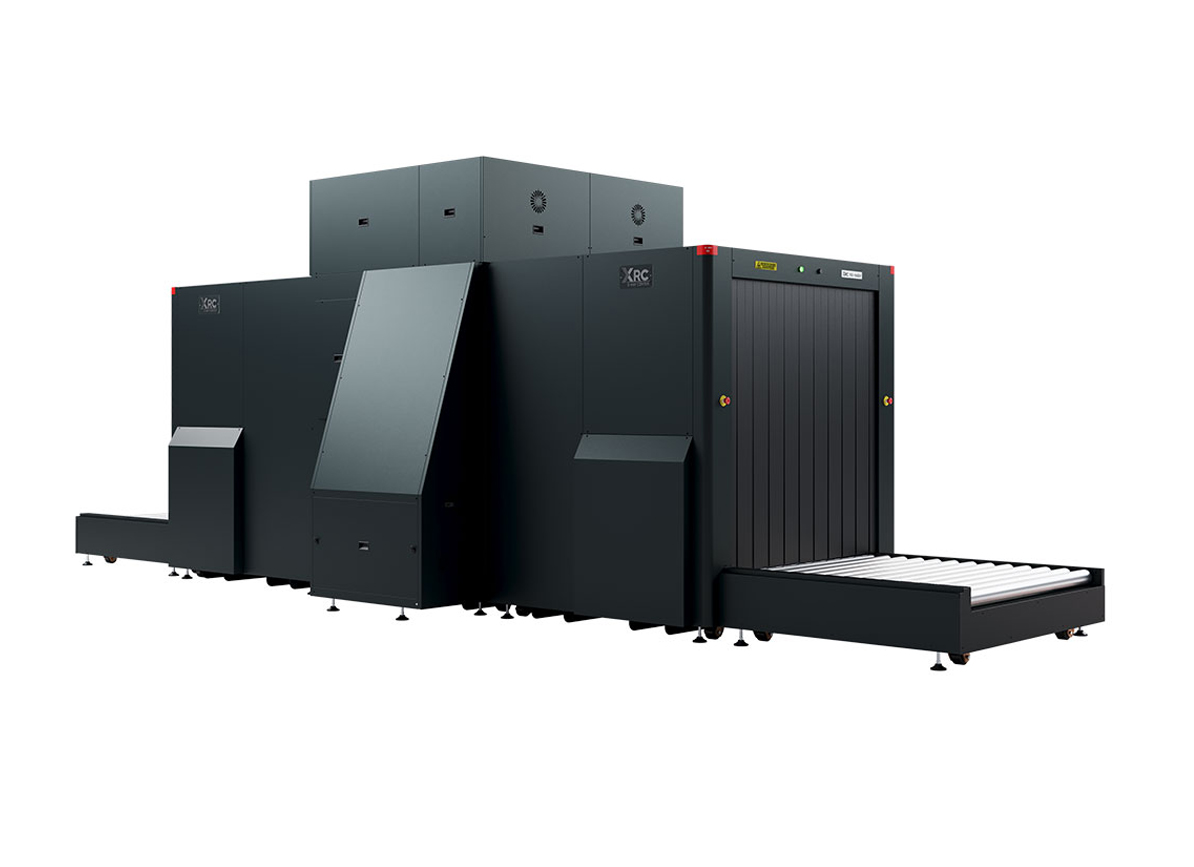

The XRC 150-165DV 200kV system shown in full exterior configuration, featuring a large tunnel opening of 1540 mm x 1660 mm, dual generator housing, and heavy duty conveyor with 3000 kg load capacity, designed for palletized freight and oversized cargo inspection.

Horizontal and Vertical Imaging in One Scan

Example X ray image generated by two 200kV sources, providing dual view imaging in a single scan. The multi diode structure enables clear differentiation of organic, inorganic, and mixed materials, supporting detection of concealed threats within dense cargo.

Integrated Cargo Screening Workstation

The XRC 150-165DV configured with external operator console and dual monitors, supporting advanced image processing functions such as zoom, edge enhancement, atomic number display, and threat image projection for high security cargo environments.

Installation Layout and System Dimensions

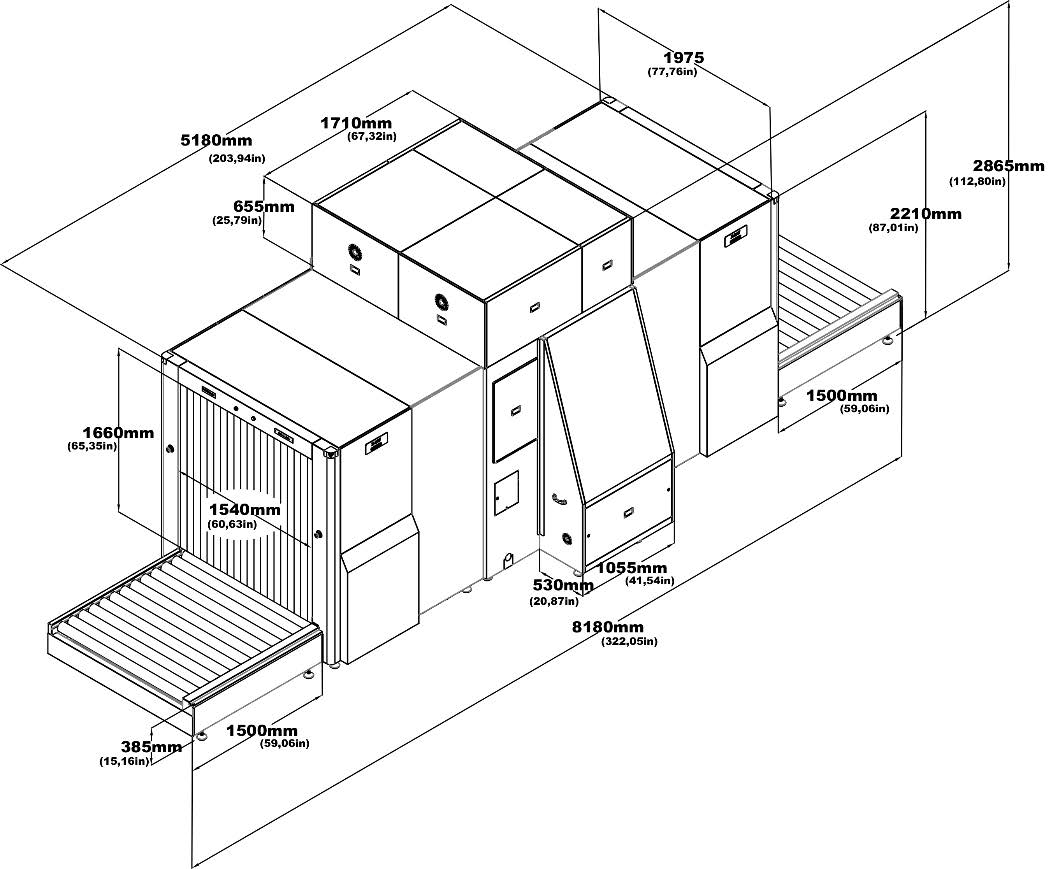

Technical drawing illustrating the overall footprint of 8180 mm length, 2865 mm width, and 2505 mm height, with conveyor height of 385 mm and tunnel size of 1540 mm x 1660 mm, supporting fixed installation in cargo terminals and logistics hubs.

Benefits & Applications

Client Benefits

Dual-View Imaging: Two-generator sources provide simultaneous horizontal and vertical imaging
Efficiency: Single scan eliminates need for package repositioning
Threat Detection: Superior effectiveness in detecting concealed objects, cutting tools, explosives, and narcotics
Image Quality: Multi-diode structure provides unique color-coded imaging
Error Reduction: Significantly reduces screening error rates
High Penetration: 200kV generator provides superior penetration for dense cargo

Use Cases

Freight companies
Cargo terminals
Airports
Customs facilities
General cargo screening
Distribution centers
Logistics hubs
High-security facilities

Integration & Compatibility

Operating System: Linux
Processor: Intel Core i5 (or superior)
Memory: 4 GB RAM (or superior)
Video Card: 2 GB (or superior)
Hard Drive: 1 TB (or superior)
USB Ports: 6 ports (or superior)
Monitor: 21.5" Flat (or superior)
Power Supply: 110/220V AC ± 10%, 50/60 Hz, 10A max
Optional Integration: Barcode reader, external camera archiving, remote viewing station, network supervisory system

Deployment Options

Stationary Installation: Fixed location in cargo screening facilities
Modular Design: Can be relocated if needed
Optional Accessories: Operator console, external UPS, search table, tray return system, inclined conveyor

Technical Specifications

Tunnel Size: 1,540 mm × 1,660 mm
Dimensions: 8,180 mm × 2,865 mm × 2,505 mm
Weight (Unpacked): ~6,100 kg
Conveyor Height: 385 mm
Conveyor Load Capacity: 3,000 kg
System Power: 110/220V AC ± 10%, 50/60 Hz, 10A max
Conveyor Speed: 0.20 m/sec (forward/reverse)
Steel Penetration: 50 mm guaranteed; 52 mm typical
Wire Resolution: 36 AWG guaranteed; 38 AWG typical
Anode Voltage: 200 kV (operating at 200 kV)
Tube Current: 1.2 mA
Beam Direction: 1st: Vertically downward; 2nd: Horizontally sideward
Article Separation: Low Z, Medium Z, High Z to 0.5 Z accuracy
Cooling System : Oil and forced air cooling
Processor: Intel Core i5 (or superior)
Monitor: 21.5" Flat (or superior)
Memory: 4 GB RAM (or superior)
Video Card: 2 GB (or superior)
Hard Drive: 1 TB (or superior)
Operating System: Linux

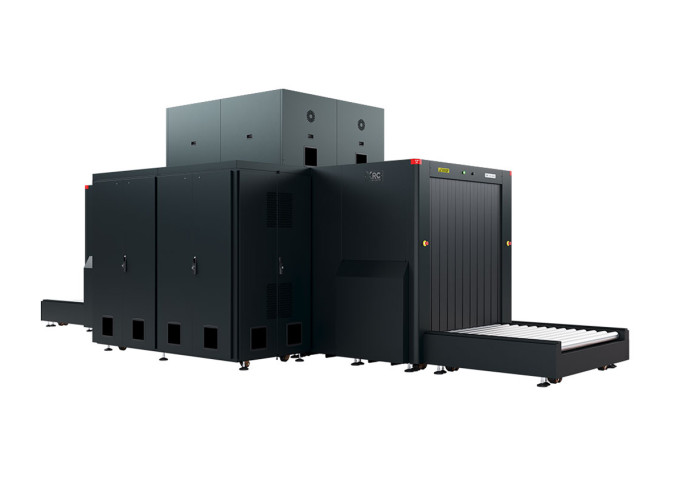

XRC 150-165DV (320kV)

Product Family

With its 320kV generator XRC 150-165DV x-ray baggage scanner provides superior performance and facilitates the operators use thanks to the various image processing functions, hazard alarm, advanced computer technology and the best in class software. It provides exceptional ease in detecting threats such as cutting tools, explosives narcotics and minimizes the error rate. Thanks to its multi-diode structure and quality in imaging of scanned objects /materials), image is colored based on density and shows organic, inorganic and mixed materials in different tones.

It is manufactured with dual view (DV) technology. Thanks to its 2 generator sources, it provides high resolution and detailed imaging in horizontal and vertical angles. The images can be accessed with a single scan without the need to re-place the packages in a different orientation. Thus, hidden objects in the luggage are detected more easily and quickly. Designed with the latest technology to scan medium and large packages on a pallet. XRC 150-165DV (320kV) is one of the most suitable solutions for use in high security facilities such as freight companies, terminals, airports, customs and general cargo.

Key features of XRC 150-165DV (320kV) :
