Compact Low-Conveyor Baggage Scanner
XRC 90-75
LARGE PARCEL AND FREIGHT
The XRC 90-75 is a compact transmission X-ray scanner featuring a low conveyor unit that facilitates the placement of heavy loads. This efficient and powerful device is designed for scanning medium to large bags and packages in detail. With advanced image processing functions, hazard alarm systems, and best-in-class software, the XRC 90-75 delivers exceptional threat detection capabilities in a compact footprint.
Technical & Functional
Key Features
XRC 90-75
XRC 90-75

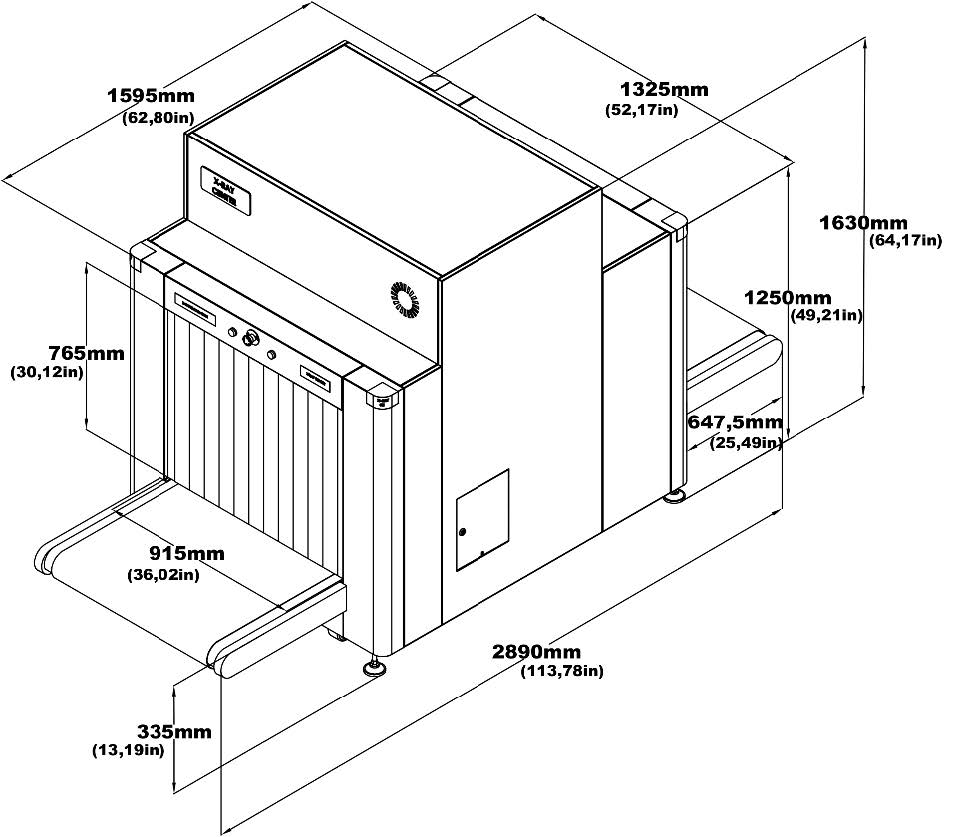

Compact System Dimensions
Benefits & Applications
Client Benefits
- Compact Design: Smaller footprint ideal for space-constrained facilities
- Low Conveyor Unit: Reduces operator fatigue and simplifies heavy object placement
- Threat Detection: Exceptional accuracy in detecting cutting tools, explosives, and narcotics
- Image Quality: Multi-diode structure provides unique color-coded imaging
- Operational Efficiency: Reduces error rates and streamlines security screening
- Cost-Effective: Compact design reduces installation and operational costs
Use Cases
- High-traffic checkpoints
- City transportation hubs (metro, ferry, train stations)
- Customs border crossings
- Prisons
- Courier depots
- International logistics companies
- Goods acceptance points
- Space-constrained facilities
Integration & Compatibility
- Operating System: Linux
- Processor: Intel Core i5 (or superior)
- Memory: 4 GB RAM (or superior)
- Video Card: 2 GB (or superior)
- Hard Drive: 1 TB (or superior)
- USB Ports: 6 ports (or superior)
- Monitor: 21.5" Flat (or superior)
- Power Supply: 110/220V AC ± 10%, 50/60 Hz, 5A max
- Optional Integration: Barcode reader, external camera archiving, remote viewing station, network supervisory system
Deployment Options
- Stationary Installation: Fixed location in security checkpoints
- Modular Design: Can be relocated if needed
- Optional Accessories: Operator console, external UPS, search table, tray return system, inclined conveyor
Technical Specifications
- Tunnel Size: 915 mm × 765 mm
- System Dimensions: 2,890 mm × 1,630 mm × 1,325 mm
- Approx. Weight: ~840 kg
- Conveyor Height: 335 mm
- Conveyor Load Capacity: 200 kg
- System Power: 110/220V AC ± 10%, 50/60 Hz, 5A max
- Conveyor Speed: 0.20 m/sec (forward/reverse)
- Steel Penetration: 35 mm guaranteed; 37 mm typical
- Wire Resolution: 36 AWG guaranteed; 38 AWG typical
- Anode Voltage: 180 kV (operating at 160 kV)
- Tube Current: 1.0 mA
- Beam Direction: Vertically downward
- Article Separation: Low Z, Medium Z, High Z to 0.5 Z accuracy
- Cooling System: Oil and forced air cooling
- Processor: Intel Core i5 (or superior)
- Monitor: 21.5" Flat (or superior)
- Memory: 4 GB RAM (or superior)
- Video Card: 2 GB (or superior)
- Hard Drive: 1 TB (or superior)
- Operating System: Linux
Compliance & Safety
- Certifications: CE Compliant, FCC & IEC Compatible
- Safety Standards: US FDA Federal Standard 21CFR 1020.40, Health and Safety at Work Act 1974-compliant
- Radiation Safety: Maximum exterior radiation level 0.1 mR/hour
- Film Safety: ISO 1600 / 33 DIN
MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
OPEN-CLOSED OPERATOR CONSOLE
ADJUSTABLE OPERATOR CONSOLE
I-STAND OPERATOR CONSOLE
21,5‘’- 27’’ FLAT MONITOR
INPUT / OUTPUT ROLLERS
INCLINED CONVEYOR
TRAY RETURN SYSTEM (MOTORIZED/GRAVITY)
SEARCH TABLE
