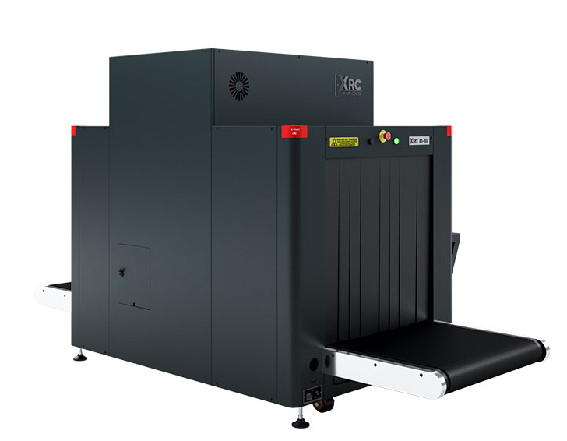

XRC 85-85
LARGE PARCEL AND FREIGHT
The XRC 85-85 is a large-format transmission X-ray scanner with a square tunnel (865 mm x 865 mm) and low conveyor height (335 mm) for easy placement of heavy objects. It is designed for scanning medium and large bags and packages and is ideal for high-traffic checkpoints such as city transportation hubs, customs border crossings, prisons, and courier depots.
Key Features
XRC 85-85
Compact System Dimensions
Benefits & Applications
Client Benefits
- Maximum capacity: Largest single-view tunnel accommodates oversized packages and bulky cargo.
- Ergonomic: Low conveyor height (335 mm) reduces operator fatigue.
- Superior imaging: Higher anode voltage (180 kV) and improved wire resolution.
- High throughput: Suitable for busy, high-volume screening environments.
Use Cases
- City transportation hubs (metro, ferry, train stations)
- Customs border crossings
- Prisons and correctional facilities
- Courier depots and logistics companies
- International logistics hubs
- Goods acceptance and distribution points
Integration & Compatibility
- Network Supervisory System (NSS) for multi-unit coordination.
- Barcode reader, external camera archiving, remote viewing.
- Smart card login and recheck station support.
Deployment Options
- Conveyor height: 335 mm.
- Load capacity: 200 kg max.
- Conveyor speed: 0.20 m/s.
- Power: 110/220V AC ±10%, 50/60 Hz, 5A max.
Technical Specifications
- Tunnel Size: 865 mm x 865 mm
- System Dimensions: 3070 mm x 1730 mm x 1275 mm
- Approx. Weight: ~1020 kg
- Anode Voltage: 180 kV (operating at 160 kV)
- Tube Current: 1.0 mA
- Steel Penetration: 37 mm guaranteed; 39 mm typical
- Wire Resolution: 36 AWG guaranteed; 38 AWG typical
- Conveyor Load: 200 kg
- Conveyor Height: 335 mm
- Processor: Intel Core i5 or better
- RAM: 4 GB or more
- Storage: 1 TB HDD
- OS: Linux
The XRC 85-85
Product Family

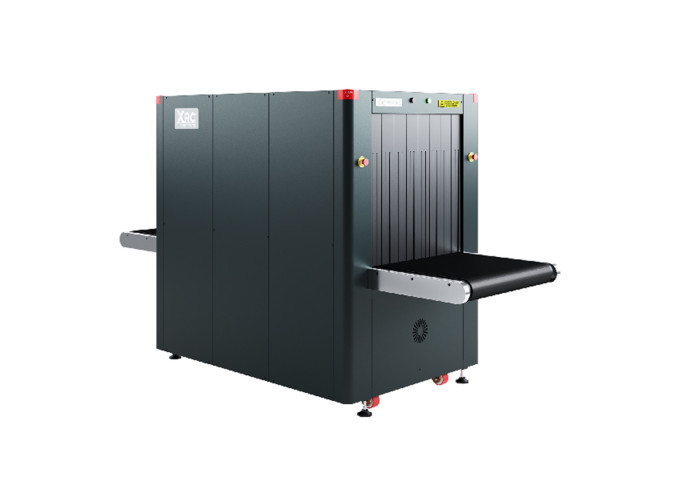

The XRC 85-85HC is a high-capacity transmission X-ray scanner with a large square tunnel (850 mm x 850 mm) and elevated conveyor height (810 mm) for comfortable operator access. The "HC" designation indicates High-Capacity operation. It is designed for scanning medium and large bags and packages at high-traffic checkpoints such as city transportation hubs, customs border crossings, prisons, and courier depots.
MAIN FUNCTIONS OF
IMAGE POST-PROCESSING
High Penetration (HP)
Perfect View (Detail Enhancement) (PV)
Edge
Pseudo Color (PS)
Organic Materials (OM)
Inorganic Materials (IM)
Black & White View (B/W)
Inverted colours (IN)
OPTIONAL ACCESSORIES
OPEN-CLOSED OPERATOR CONSOLE
ADJUSTABLE OPERATOR CONSOLE
I-STAND OPERATOR CONSOLE
21,5‘’- 27’’ FLAT MONITOR
INPUT / OUTPUT ROLLERS
INCLINED CONVEYOR
TRAY RETURN SYSTEM (MOTORIZED/GRAVITY)
SEARCH TABLE
