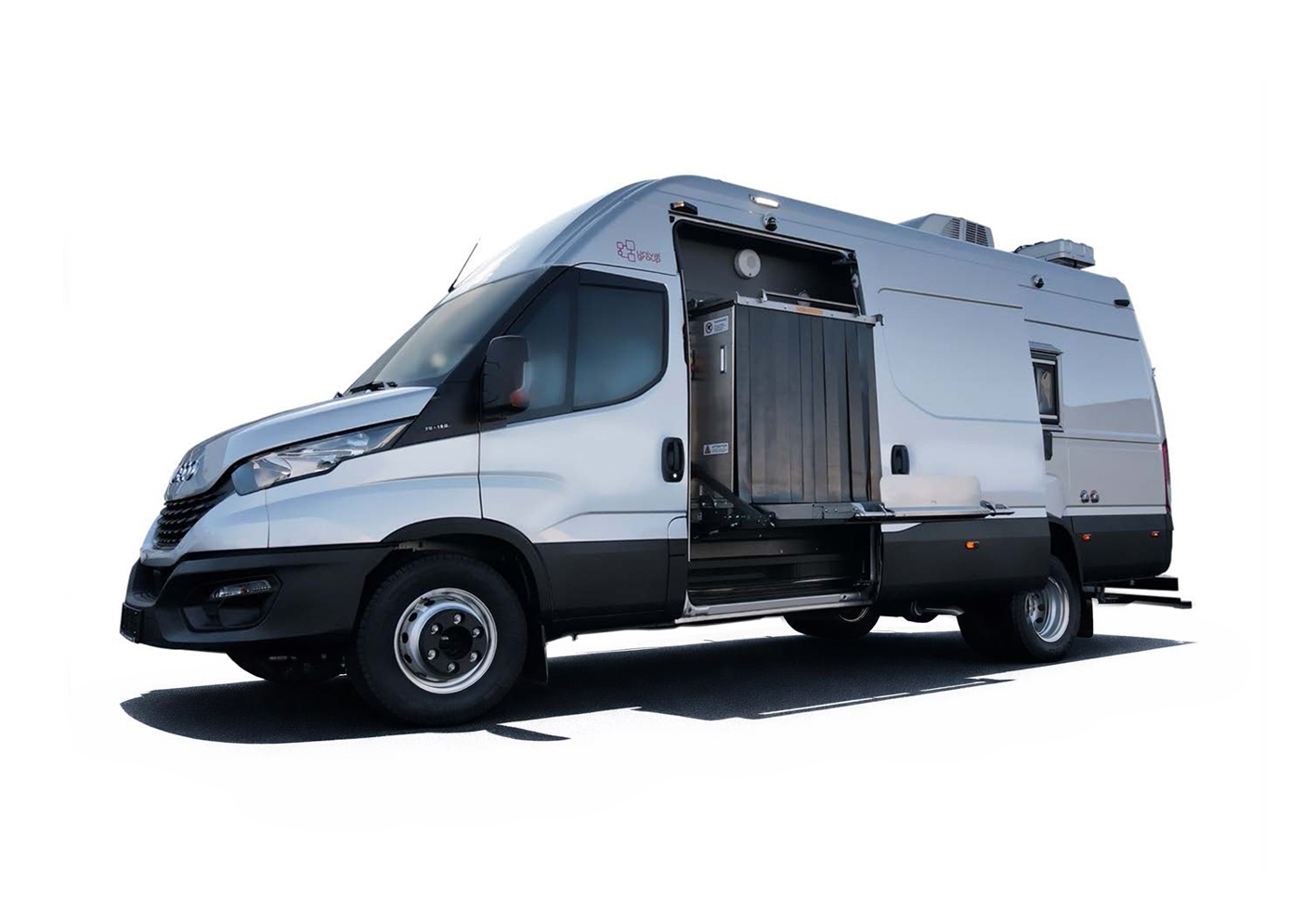

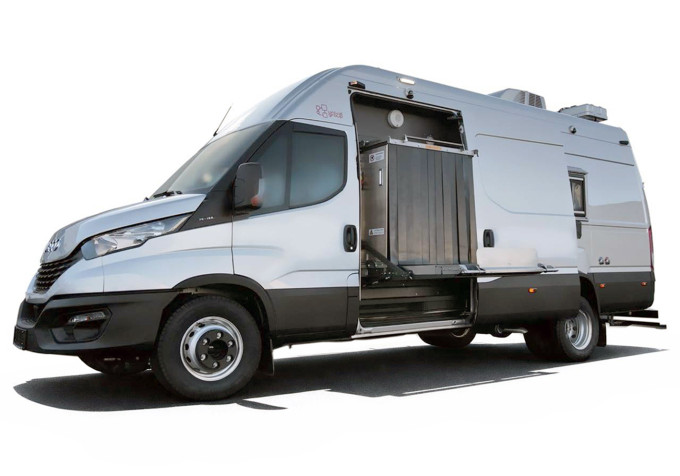

The MXV-DV 100100 is a mobile dual view X ray inspection van designed for high capacity screening of luggage, large baggage, and small cargo. The system integrates the XRC 100100DVM dual view baggage scanner into a fully equipped mobile platform, providing two perpendicular X ray projections of each inspected object for enhanced threat detection.

The integrated 100 x 100 cm tunnel allows inspection of bulky items, freight, and large cases without repositioning. Dual energy imaging with selectable 3+1 or 7+1 color material discrimination supports accurate identification of organic, inorganic, and metallic substances.

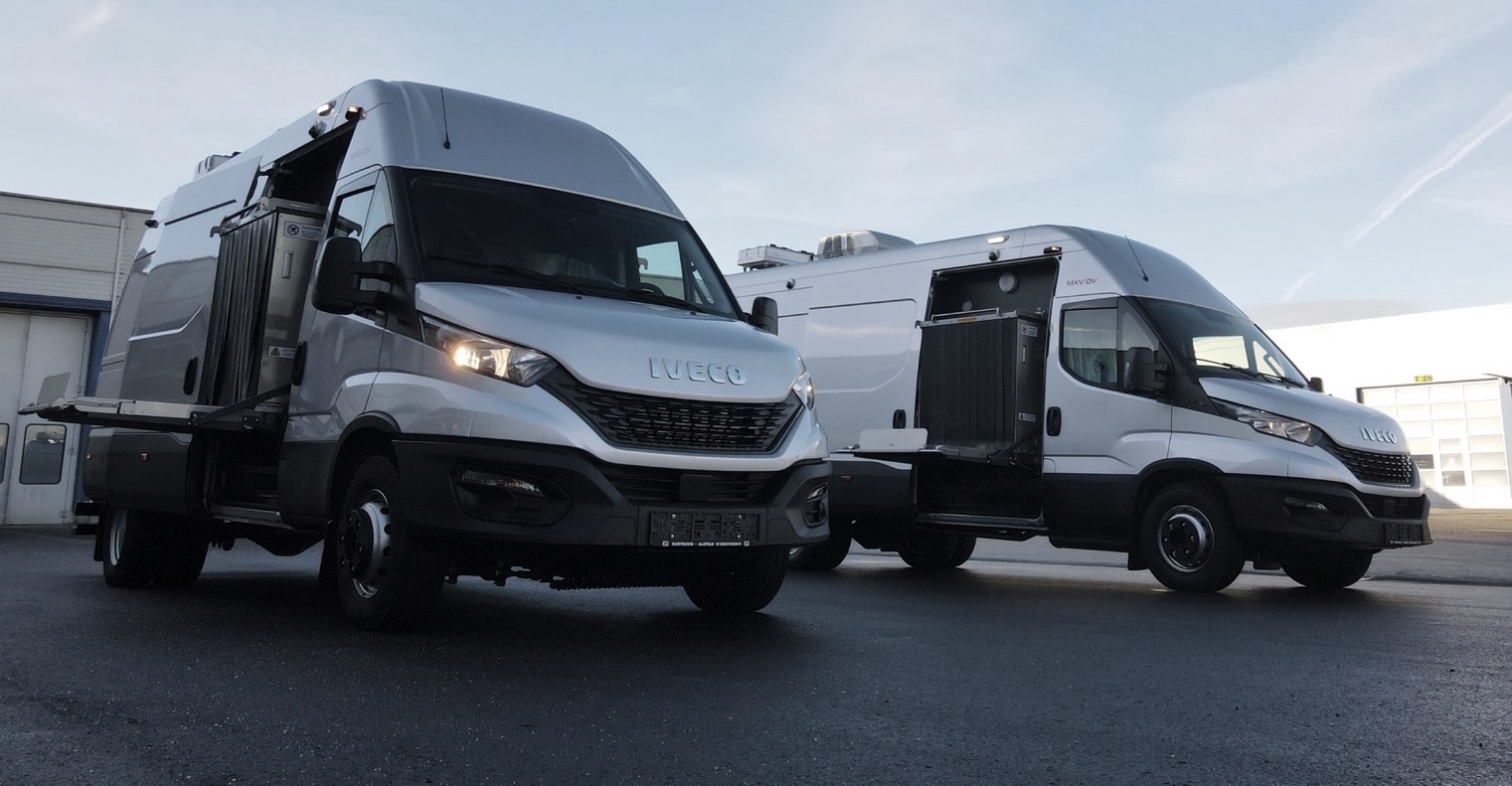

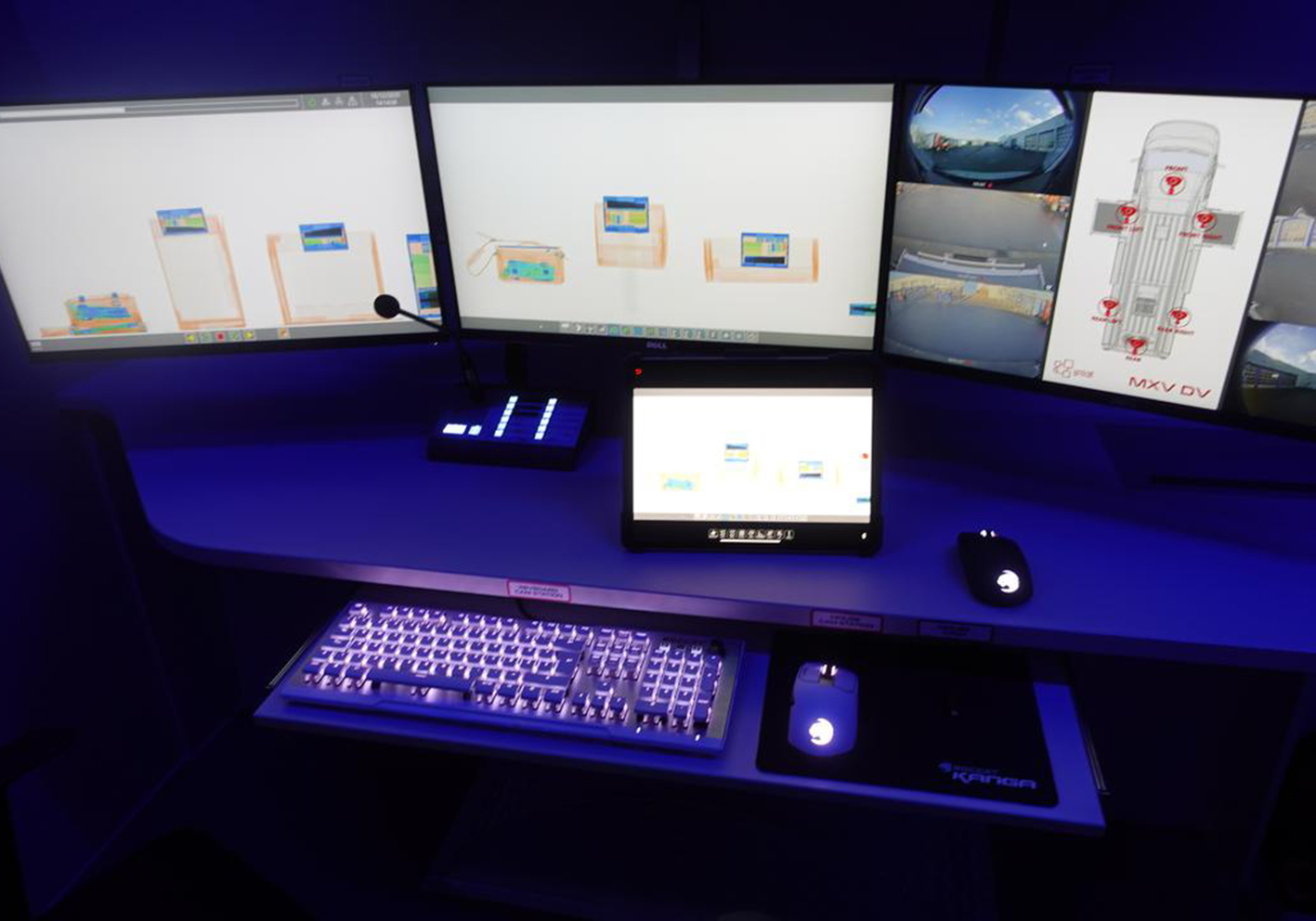

Built on an Iveco Daily 70C platform or alternatively GMC and Ford chassis configurations, the MXV-DV 100100 operates independently via an onboard 8 kVA diesel generator, with additional external shore power capability. The vehicle includes a dedicated operator cabin, reinforced scanner installation, integrated 360° video surveillance, intercom system, and LTE based image sharing functionality.

The system is assembled according to German quality standards, with optional assembly support in the UAE through local integration partnership.
